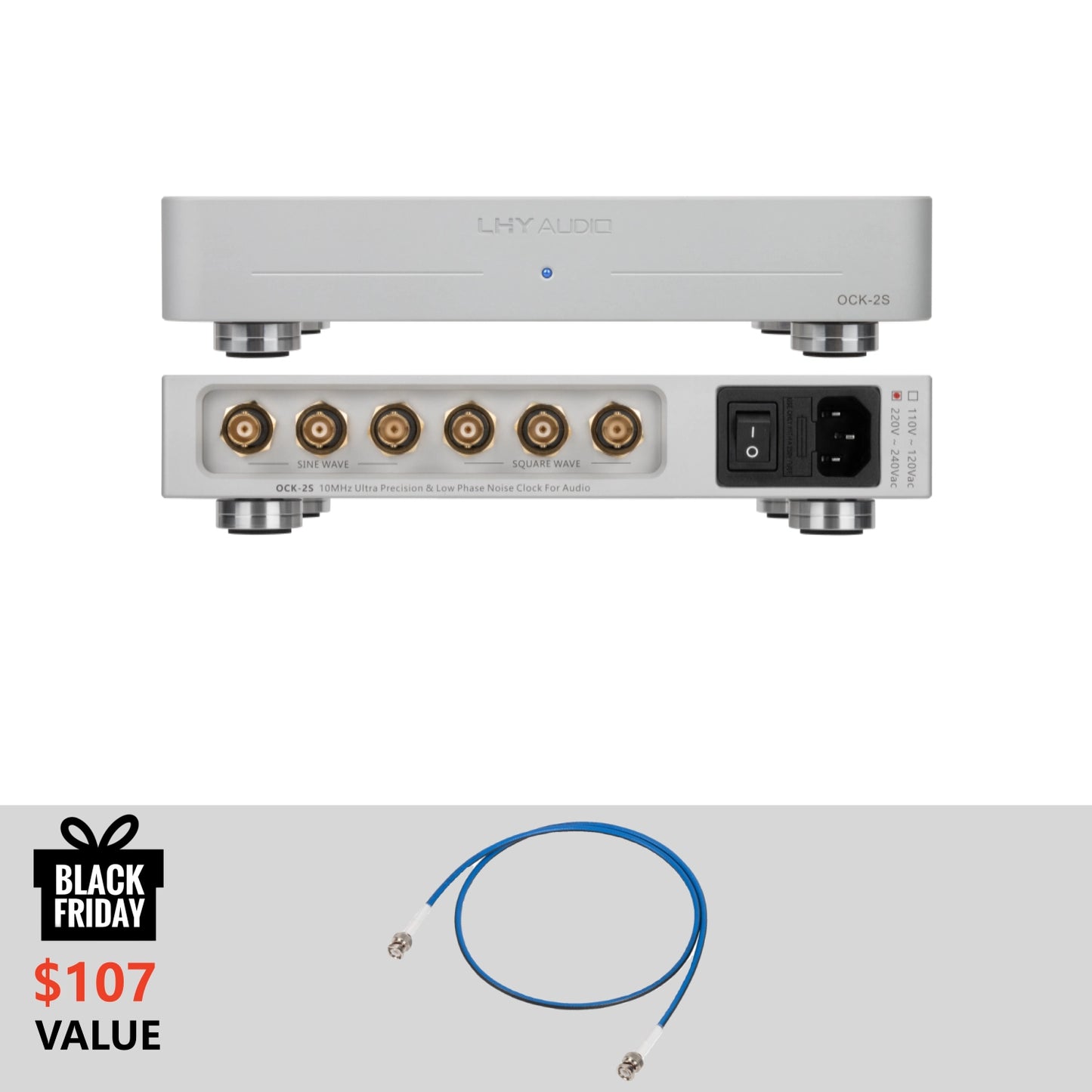

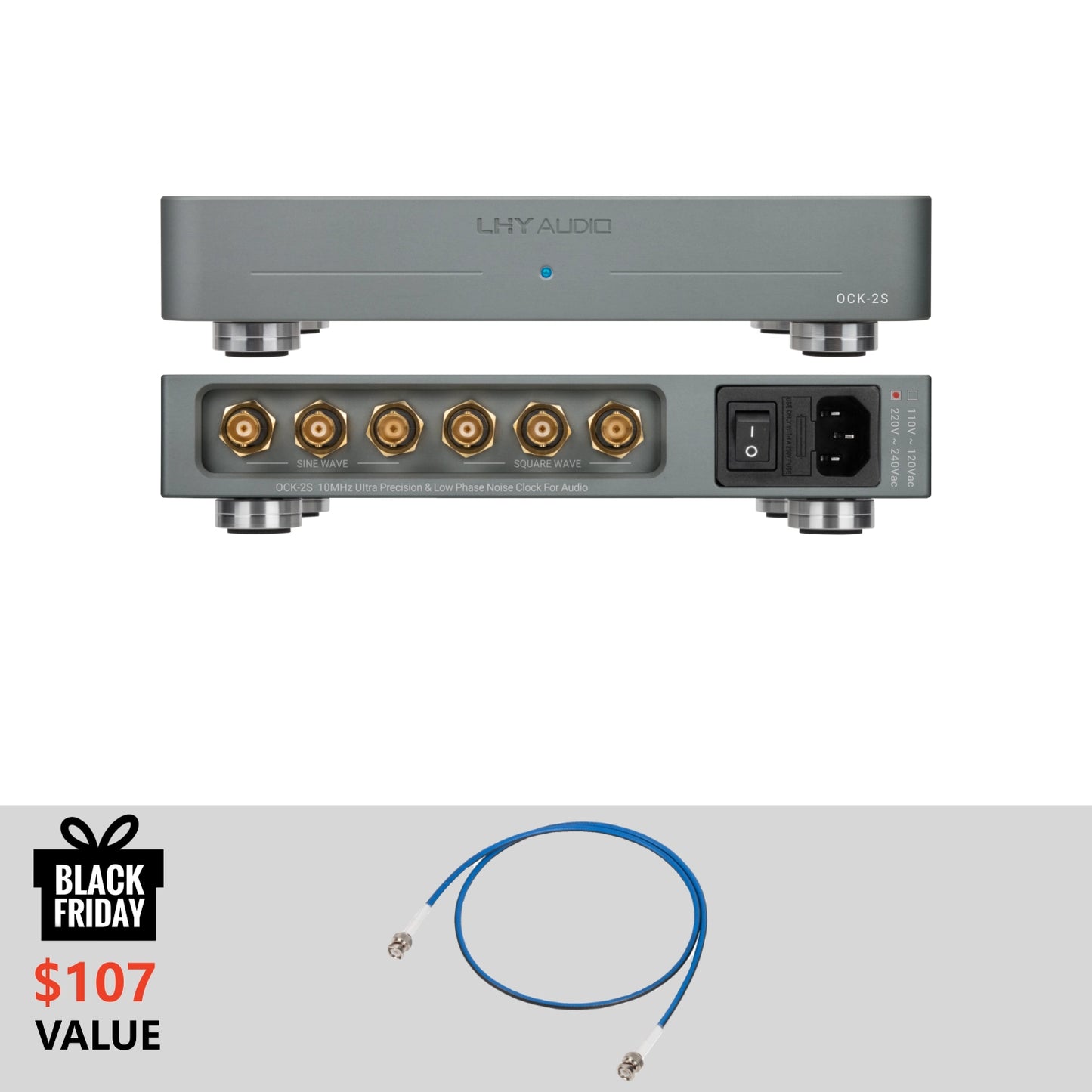

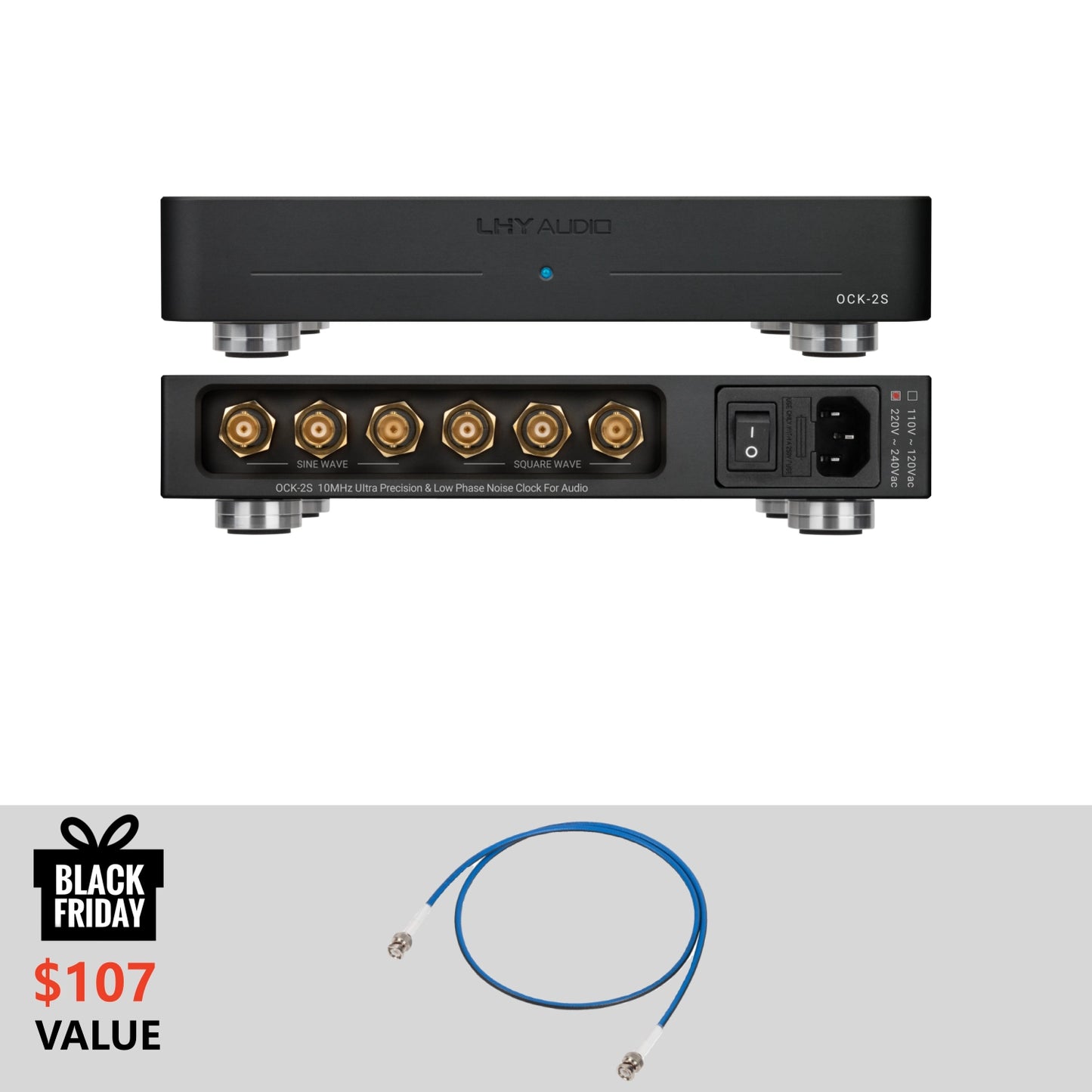

OCK-2S | Reference Master Clock Generator

12% off
$1,129.00
$993.99

Shipping calculated at checkout.

In stock!
Free shipping!
Spend to Free shipping
People are currently viewing this
Free Shipping Wordwide
Manufacturer’s Warranty
Official Technical Support
Version: Standard(-110dBc)
颜色: Silver
AC Voltage: 110V~120V
Select The Options Above
Add to Cart Select The Options Above

1. Ultra-Low Phase Noise Performance
Custom-selected SC-cut OCXO
Phase noise: -110dBc @1Hz Offset (typical)
Each oscillator individually tested with included phase noise report
2. Exceptional Stability & Accuracy
Frequency stability: <±5ppb
Frequency accuracy: <±0.05ppm
Optimized OCXO tuning voltage reference circuit
3. Professional Circuit Design
6 independent output drivers with isolation
Isolation transformers for square wave outputs
Optimized signal and power routing
μV-level linear power supply
4. Premium Mechanical Design
CNC-machined thick aluminum chassis
Separated circuit compartments
Minimized interference and mechanical resonance
Effective vibration and noise isolation

Master Clock 10MHz Outputs:

  • Sinewave 50Ω x 2 ( 1.4Vpp / 0.5Vrms / 7dBm )
  • Sinewave 75Ω x 1 ( 1.4Vpp / 0.5Vrms / 7dBm )
  • Squarewave 50Ω x 2 ( 1.4Vpp / 0.5Vrms / 7dBm )
  • Squarewave 75Ω x 1 ( 1.4Vpp / 0.5Vrms / 7dBm )

Output Stability: < 5ppb

Output Accuracy: < 0.05ppm

Phase Noise: -110dBc at offset 1Hz

Operating Temperature:

  • 15mins to warm up
  • 60mins to reach optimal temperature

Power Consumption: < 9W

Dimension: 240W x 50H x 175D (mm)

Weight: 2.05kg

What’s in the package:

  1. LHY OCK-2S
  2. OCXO Phase Noise and Alan Deviation Test Report
  3. Generic Power Cord

Product Link: https://www.lhy-audio.com/products/ock-2s/

User Manual: https://www.lhy-audio.com/documents/Manual/OCK-2S User Manual（Version 1.0 ）.pdf

Certificate: CE-EMC | IEC | ROHS | FCC
