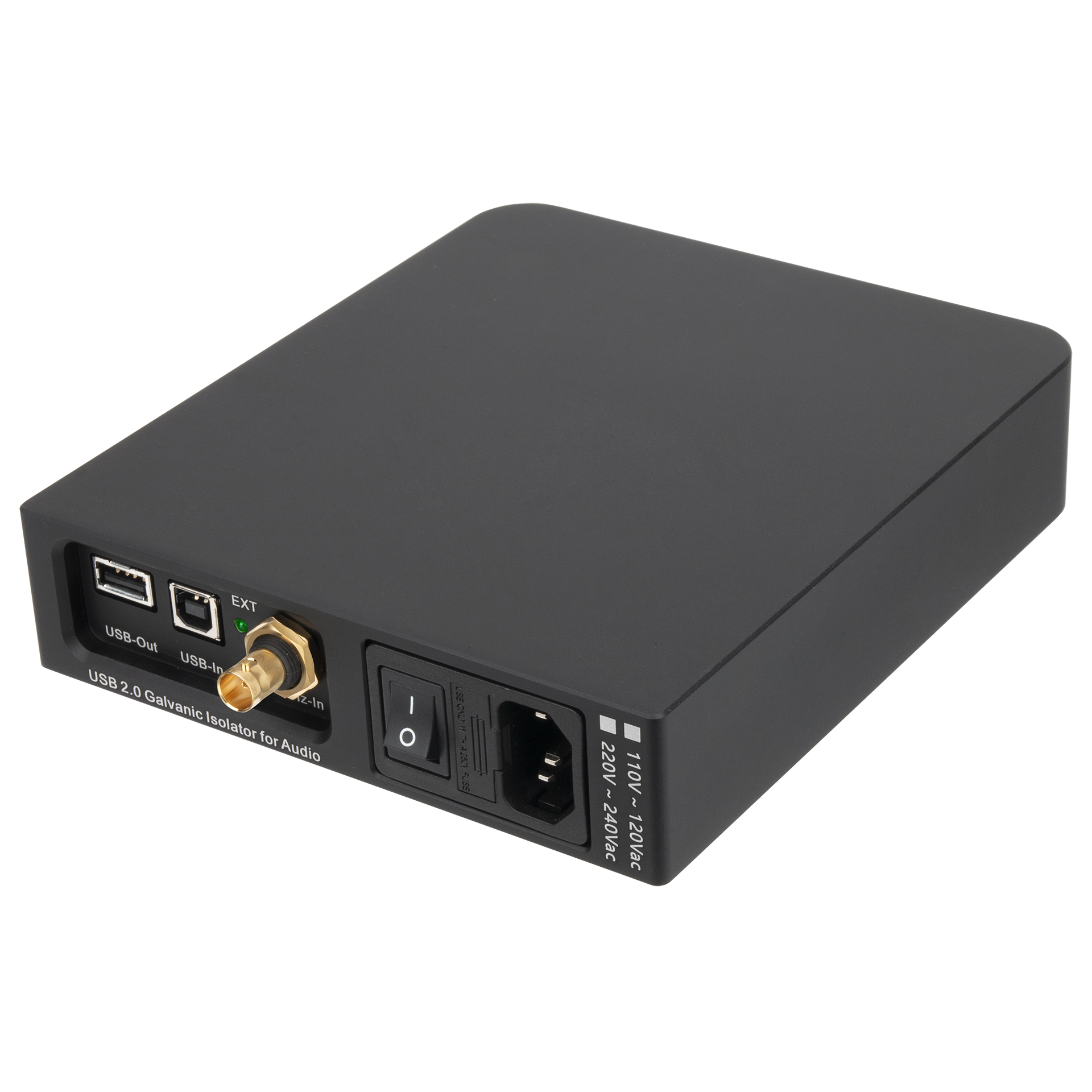

UIP | USB 2.0 Galvanic isolator for Audio
Shipping calculated at checkout.
Free Shipping Worldwide
Manufacturer’s Warranty
Official Technical Support
Description
UIP isolates the USB connection between your source and DAC, with regenerated power and an OCXO-based clock system.
isolation

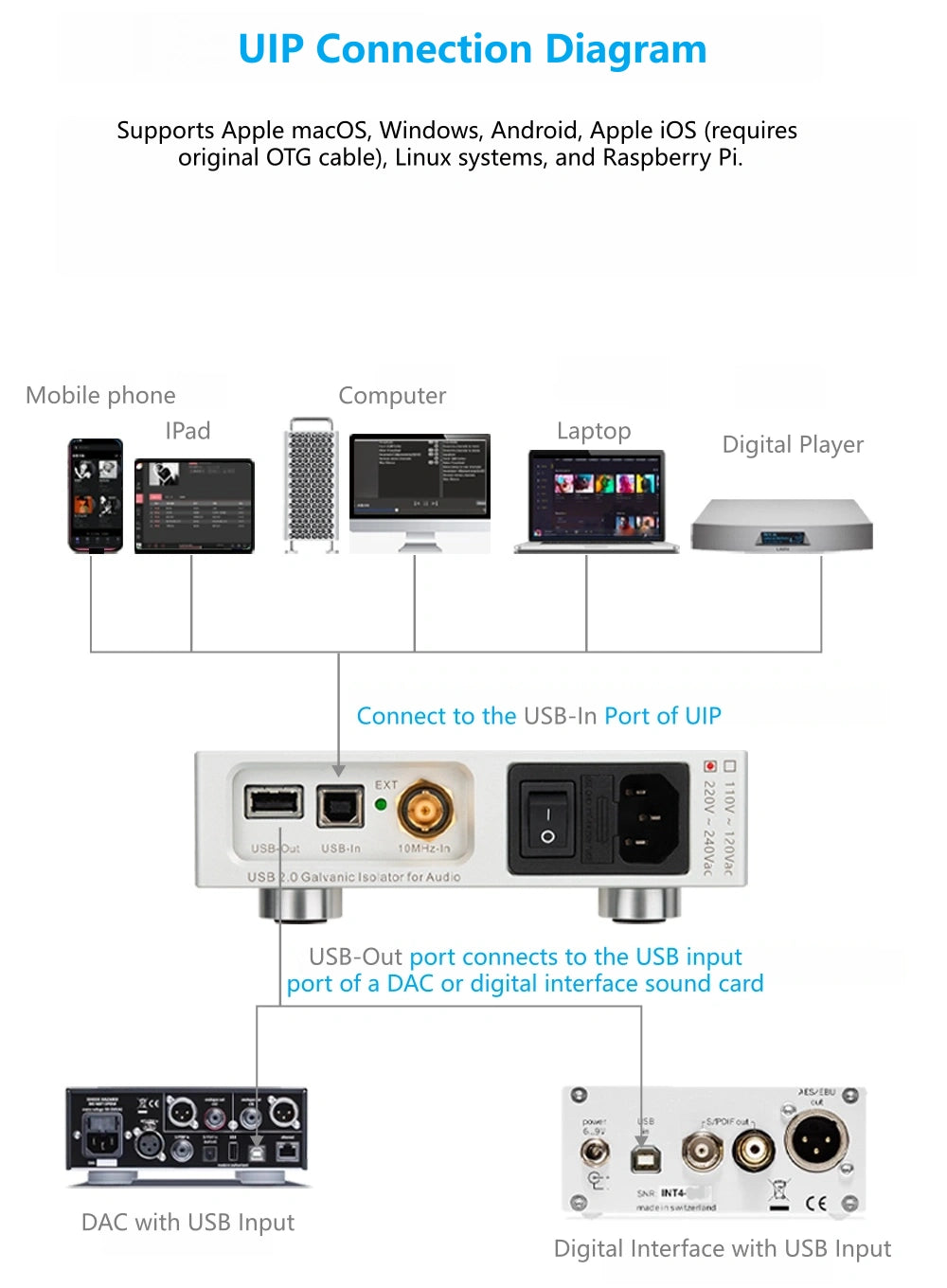

Connect your computer or USB source through UIP to your USB DAC. ADuM4165 isolates USB data; the output receives regenerated power.
480Mbps
Supports up to
PCM 768 kHz
DSD512*

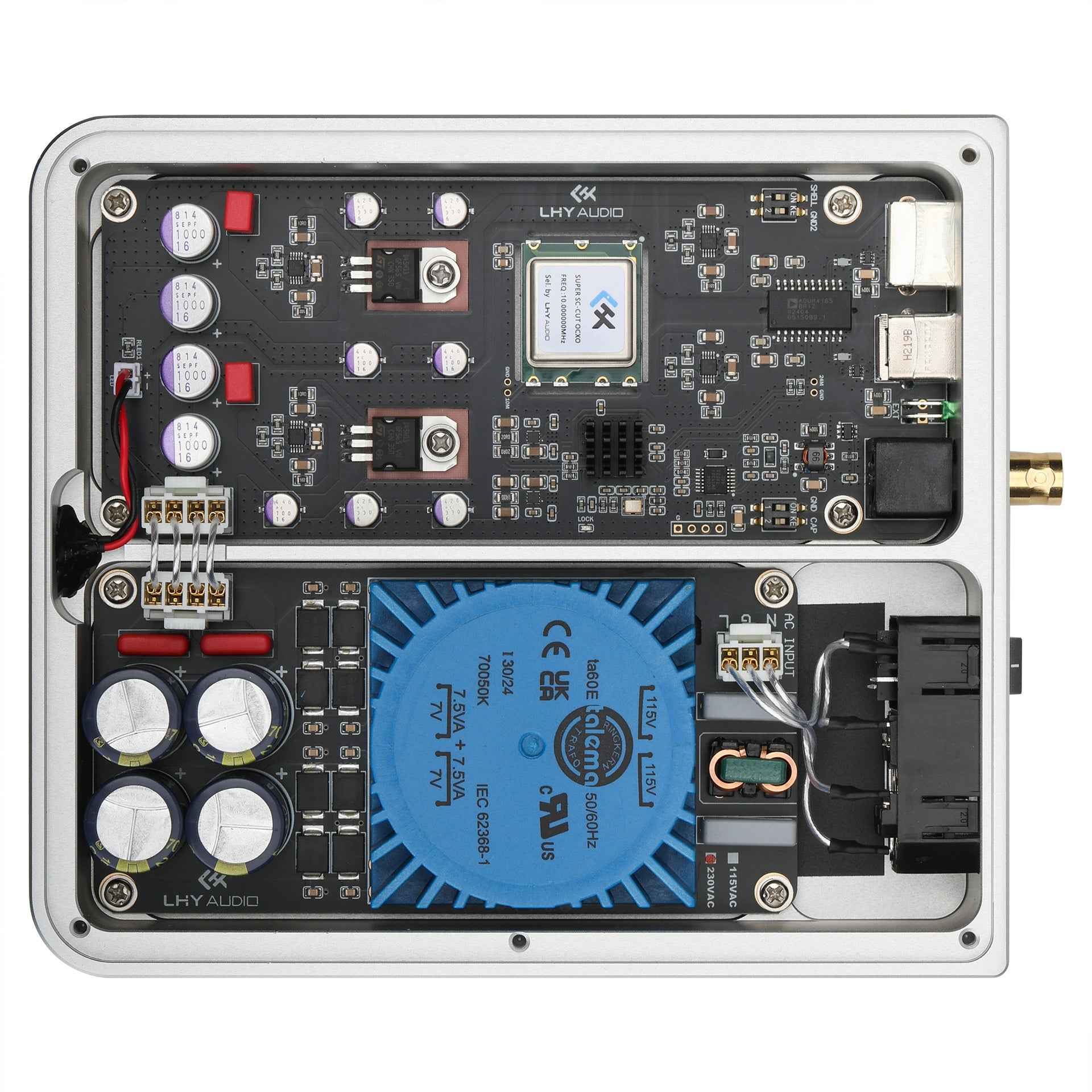

4 power rails.
Independent low-noise regulation for the OCXO, USB output and both sides of the isolator.
2 × LT3042 + PNP
2 × LT3042
Talema transformer.
OCXO + PLL
Built-in SC-cut OCXO and PLL provide a precision clock reference for USB reclocking.

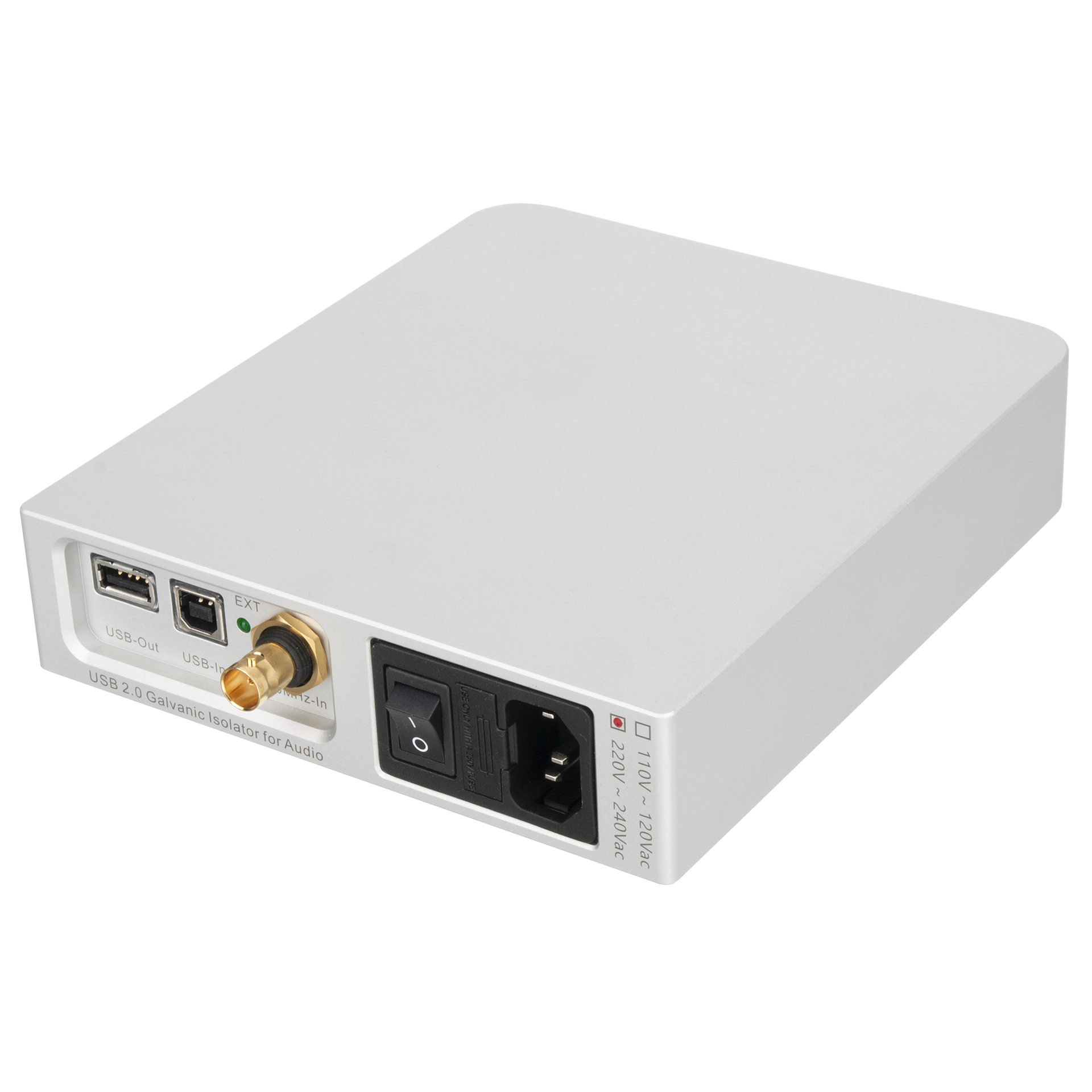

Optional external master clock → 1 × BNC IN · 10 MHz

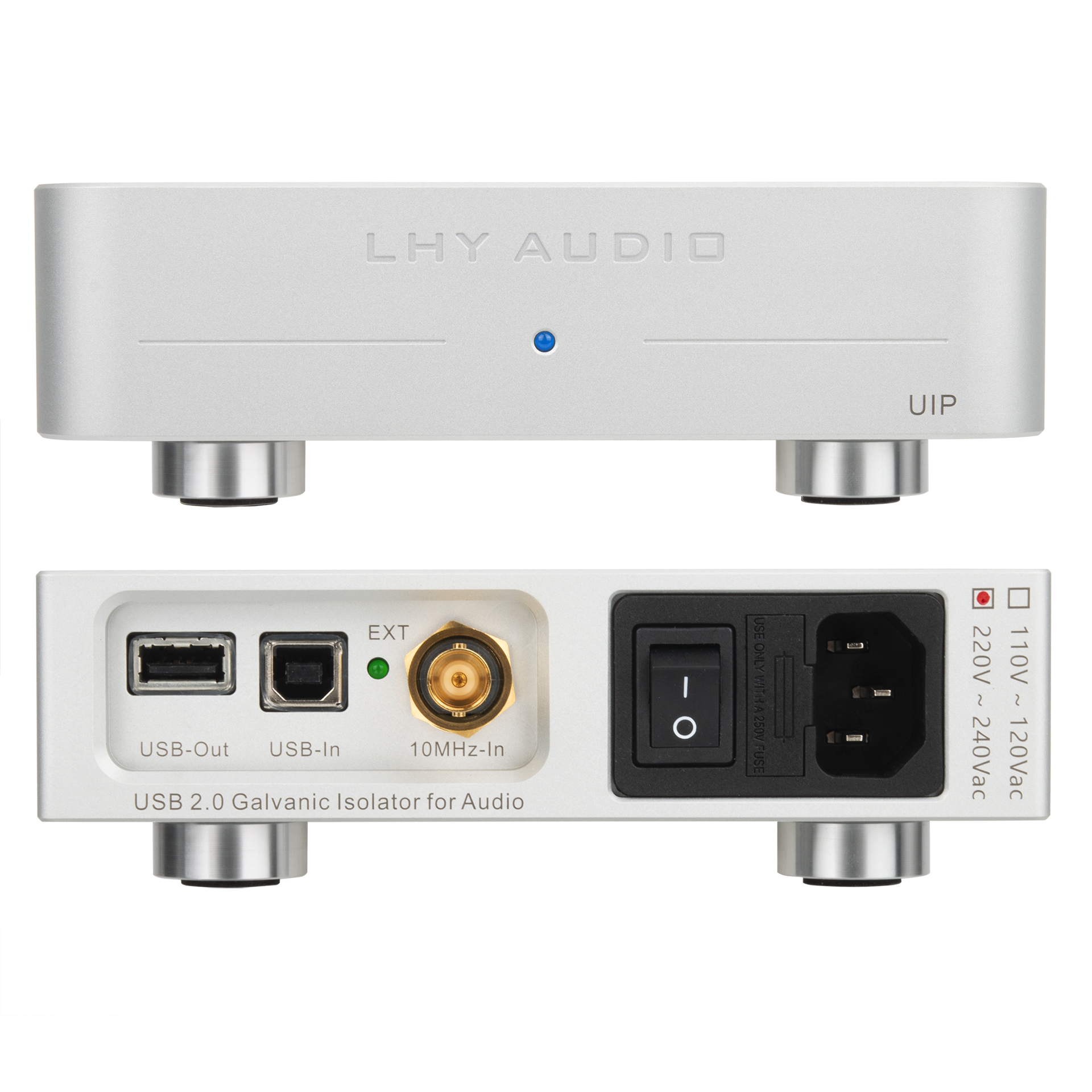

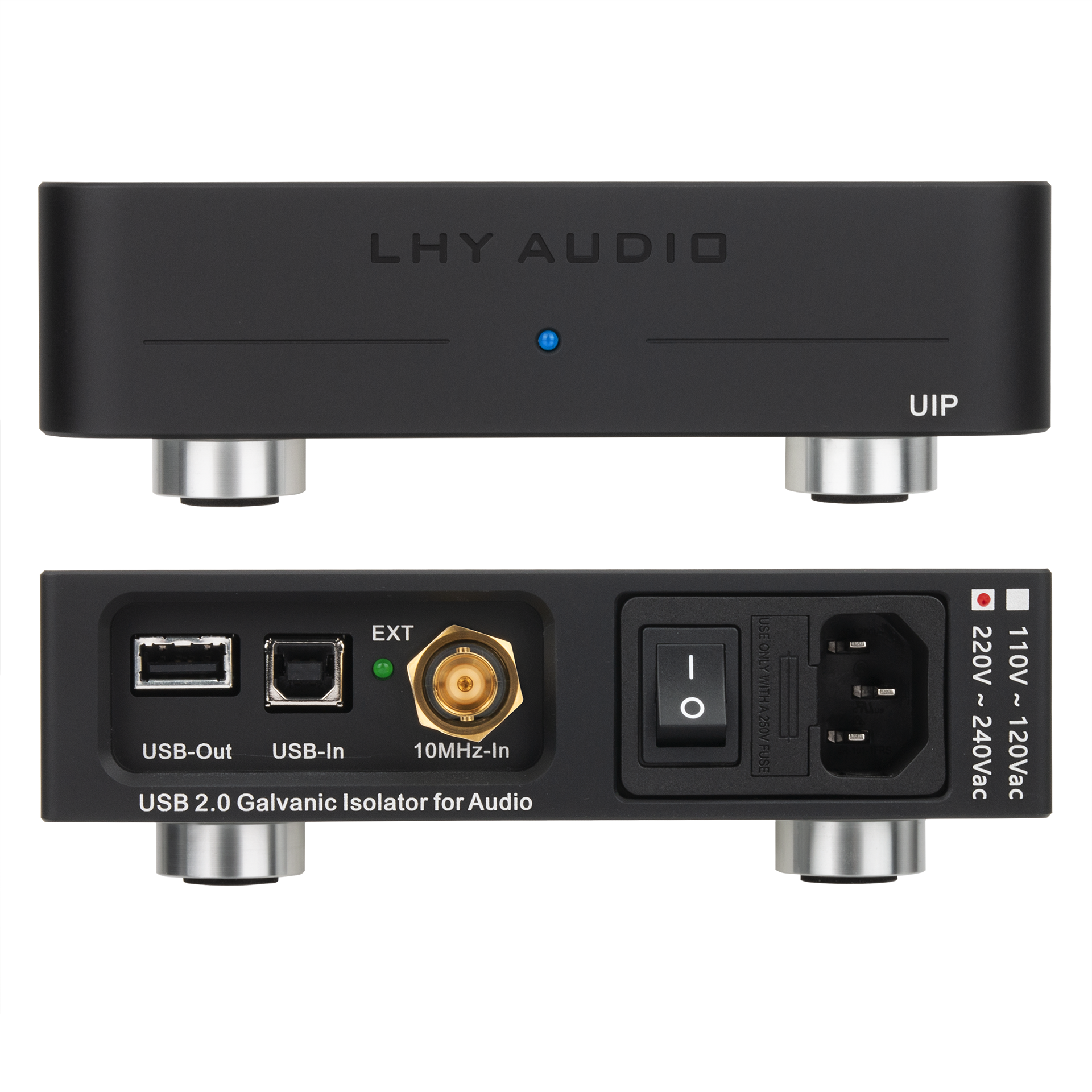

*Requires a compatible USB source, playback software and DAC. USB-B / USB-A labels identify the ports on UIP.
