LPS-50 Pro | Pro Series 50W Audio-Grade Ultra-Low Noise Linear Power Supply

Ultra-Low Noise & Pure Power:

Core Chipset:

Utilizes Linear Technology's next-generation LDO chip, the LT3041, in an innovative 5-parallel output configuration. This design effectively lowers output impedance, achieving high bandwidth, low internal resistance, and ultra-low ripple characteristics, providing the DAC with a clean, high-transient-response power source.

Measured Performance:

The unit's no-load ripple is below 20μV, and remains under 100μV even under high-current output, ensuring superior power purity.

High Efficiency & Low Heat:

A very low dropout voltage design significantly improves overall efficiency compared to the previous generation, reducing heat generation by over 60% for stable long-term operation.

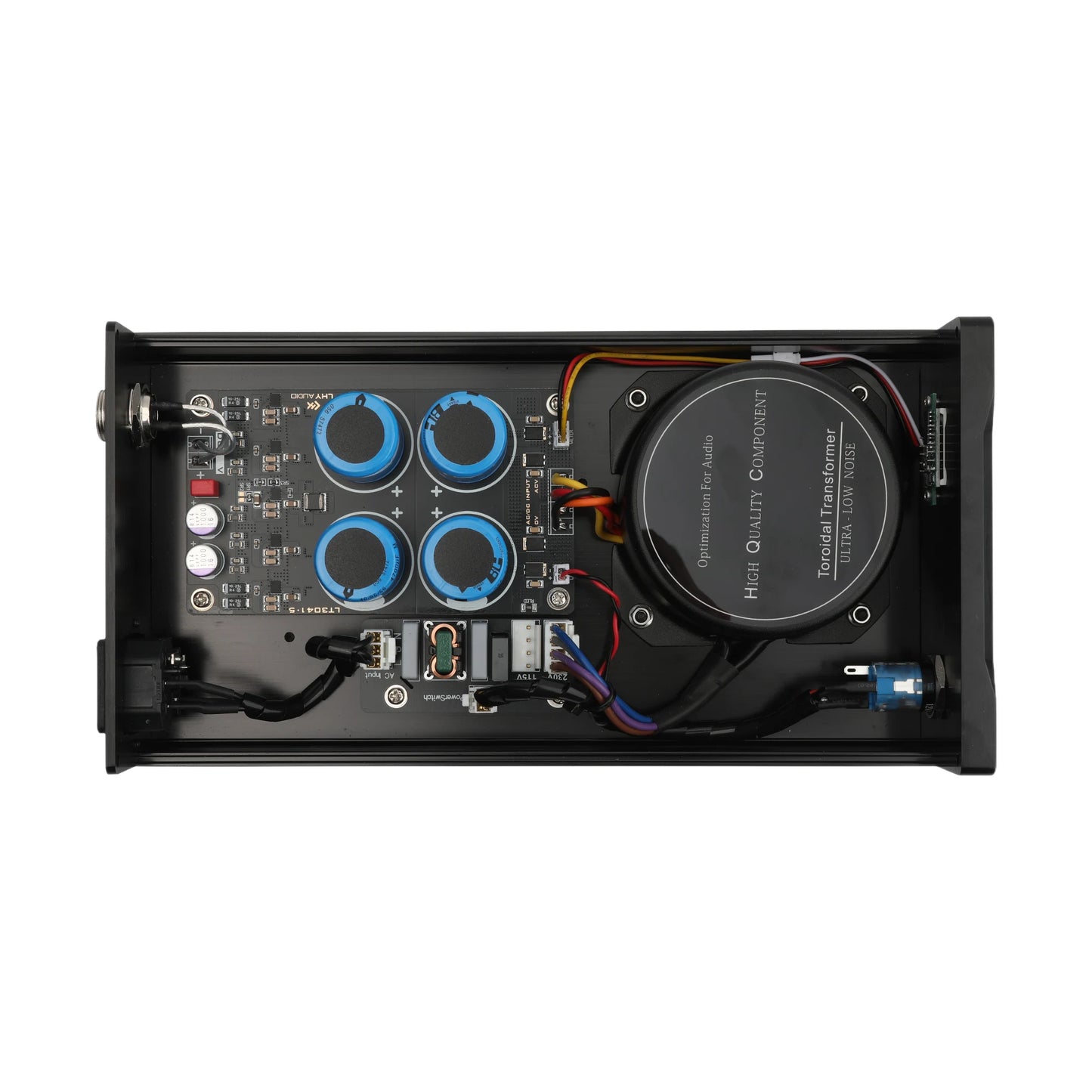

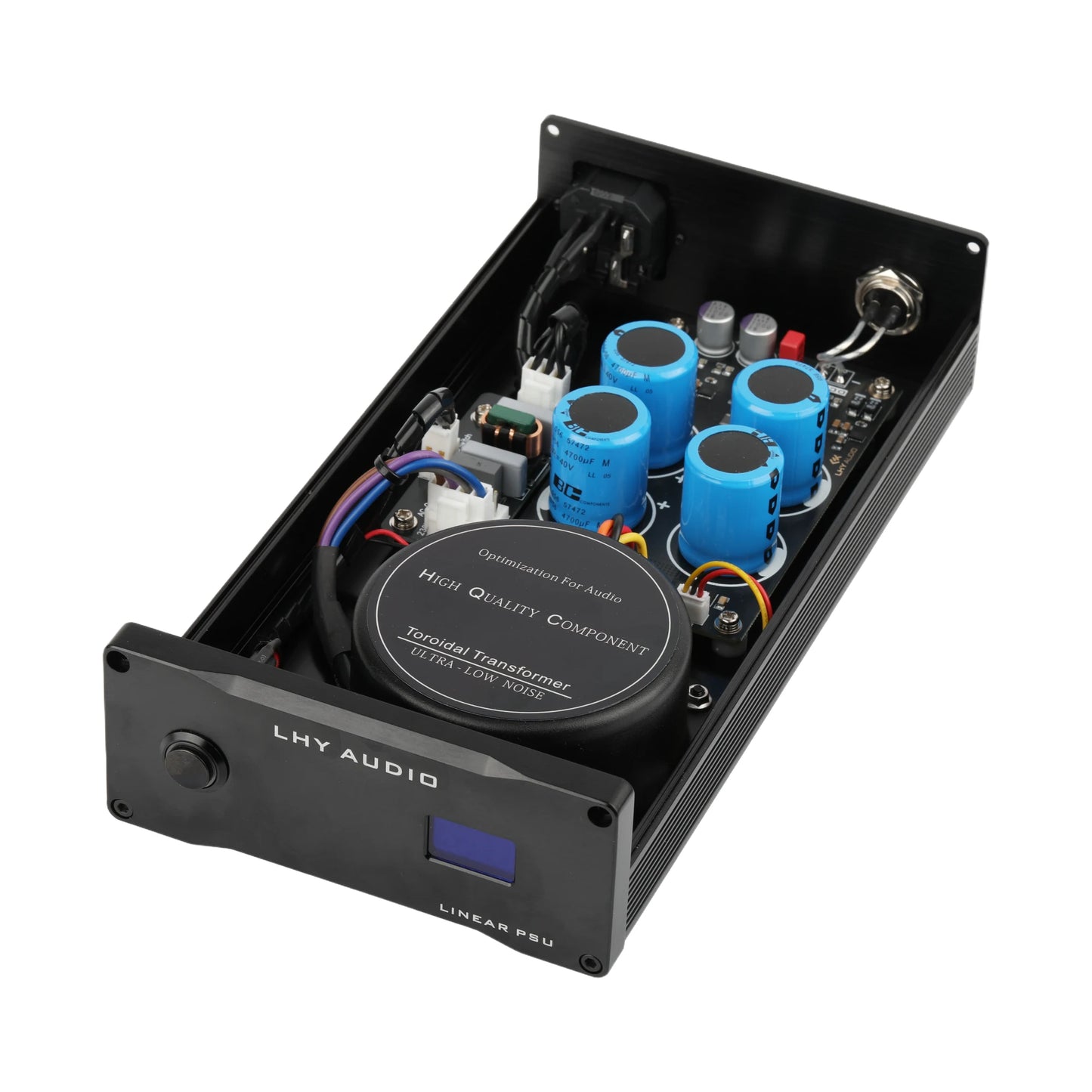

Premium Components & Precision Craftsmanship:

PCB Process:

Features a 4-layer PCB with gold immersion plating, ensuring superior electrical performance and signal integrity.

Key Components:

Employs high-current, low-internal-resistance Schottky rectifiers, Philips Vishay BC 058 series large-capacity electrolytic capacitors, X7R MLCC capacitors, high-precision low-temperature-drift resistors, and Panasonic electrolytic capacitors to ensure stability and dynamic performance.

Heat Dissipation:

A pure aluminum heat conduction plate is attached to the bottom of the PCB for enhanced and lasting cooling stability.

Comprehensive Safety Protection:

Integrated protection against short circuits, overload, and overheating for complete safety of connected equipment.

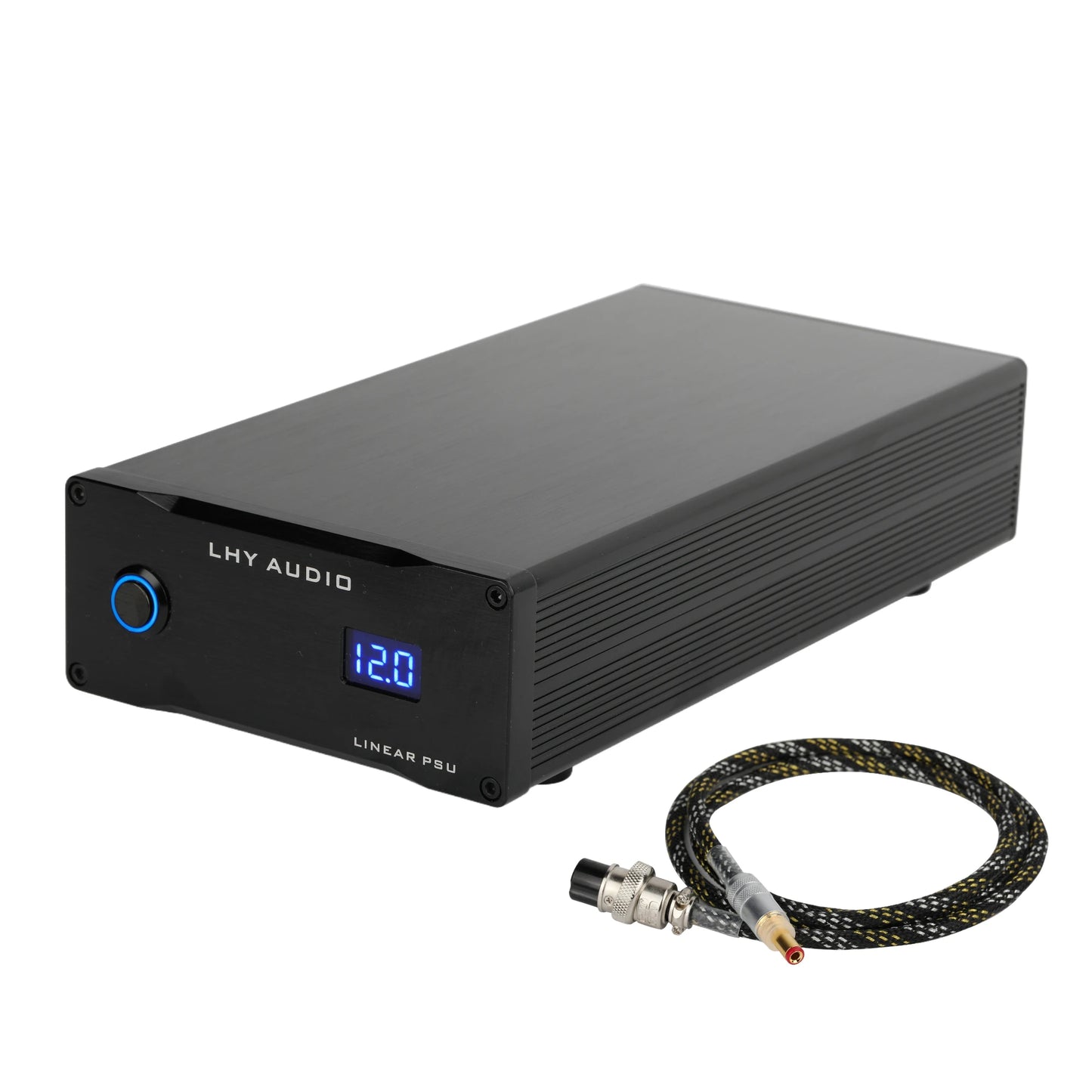

High-Quality Included Cable:

Bundled with an Ultimate Series high-end DC cable. The cable uses high-purity oxygen-free copper conductors with precision processing; the DC plug is a 24K gold-plated aviation connector for a tight, low-impedance connection, ensuring minimal signal loss.
