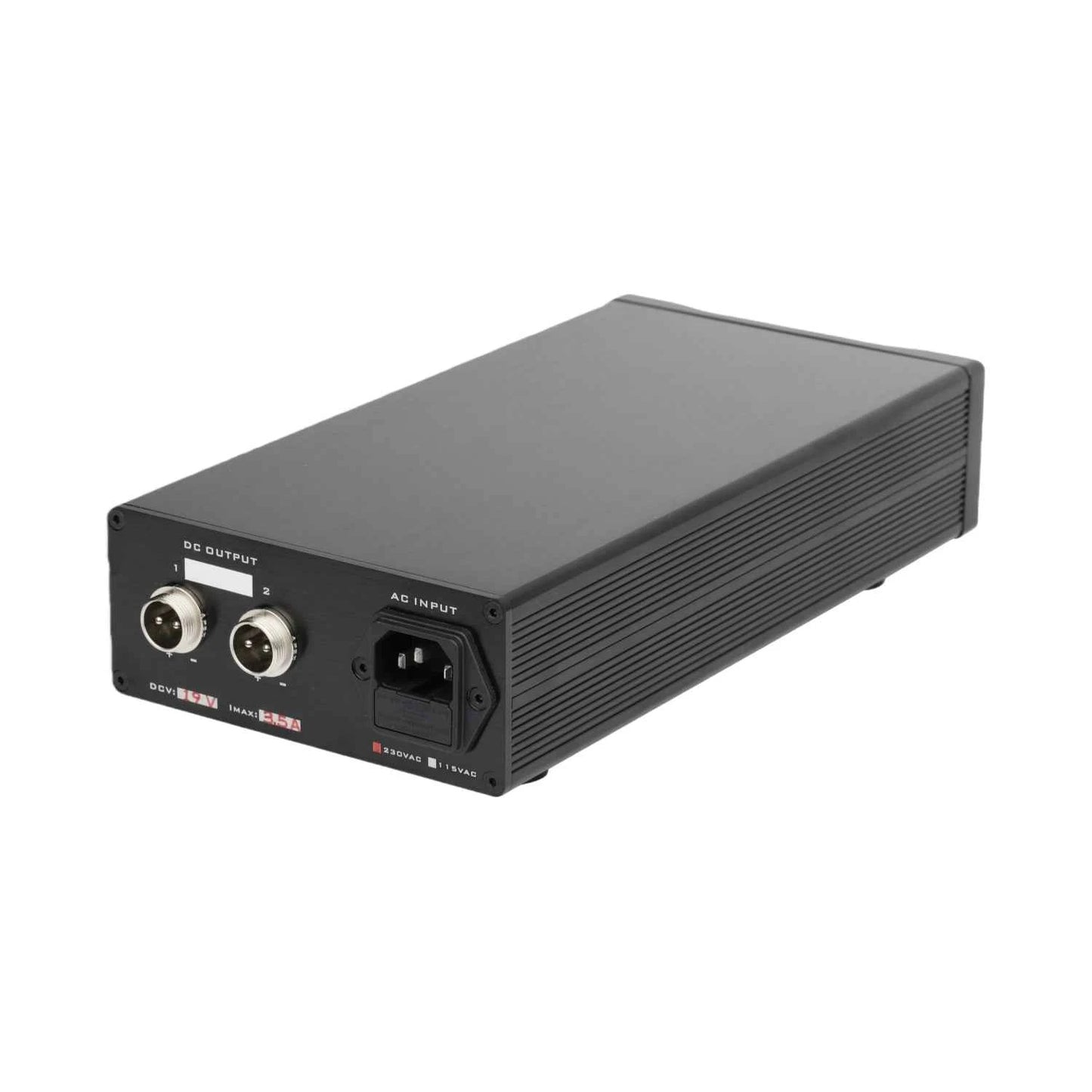

LPS-80 Dual | 80W Independent Dual-Output Audio-Grade Linear Power Supply

15% off
$390.00
$331.99

Shipping calculated at checkout.

In stock!
Free shipping!
Spend to Free shipping
People are currently viewing this
Free Shipping Wordwide
Manufacturer’s Warranty
Official Technical Support
Input AC Voltage: 110V-120V
Output DC Volatge: 5V+12V
Select The Options Above
Add to Cart Select The Options Above

  • Two fully independent DC voltage outputs with no cross-interference.
  • New high-performance voltage regulation: Multiple LT3086 chips in parallel.
  • High-end 4-layer PCB with thickened outer copper foil and gold immersion process.
  • High-current, low-resistance Schottky diode rectification.
  • Vishay BC filtering electrolytic capacitors.
  • Output short-circuit and over-current protection.
  • Low resistance and high transient response.
  • μV-level ripple and noise.
  • Brand: LHY AUDIO
  • Model: LPS-80 Dual
  • AC Input: Default AC 220V~240V (110-120V optional), 50/60Hz
  • Input Power: Max 80W
  • Output Type: Two independent DC voltage outputs
  • Regulator Circuit: 80W: LT3086 x 4
  • Output Voltage Accuracy: ±2%
  • Load Regulation: ±2%
  • No-load Noise: < 50μV
  • Load Noise: < 50μV
  • Power Supply Rejection Ratio (PSRR): 80dB (120Hz)
  • Over-Current Protection: 105% to 130%
  • Fuse: 105% to 130%
  • Weight: 2.1kg (LPS-80 Dual)
  • Dimensions: 130mm (W) × 60mm (H) × 250mm (D)
  • Accessories: Includes high-purity oxygen-free copper DC cables (1x Aviation 2P to DC2.1, 1x Aviation 2P to DC2.5). Contact customer service for other connector specifications.
  • Version Note: Components for the latest version may be adjusted to other brands and parameters of the same grade as needed; the final product shall prevail.
  • Testing: Professionally tested with AP (Audio Precision) equipment for ripple and noise performance.

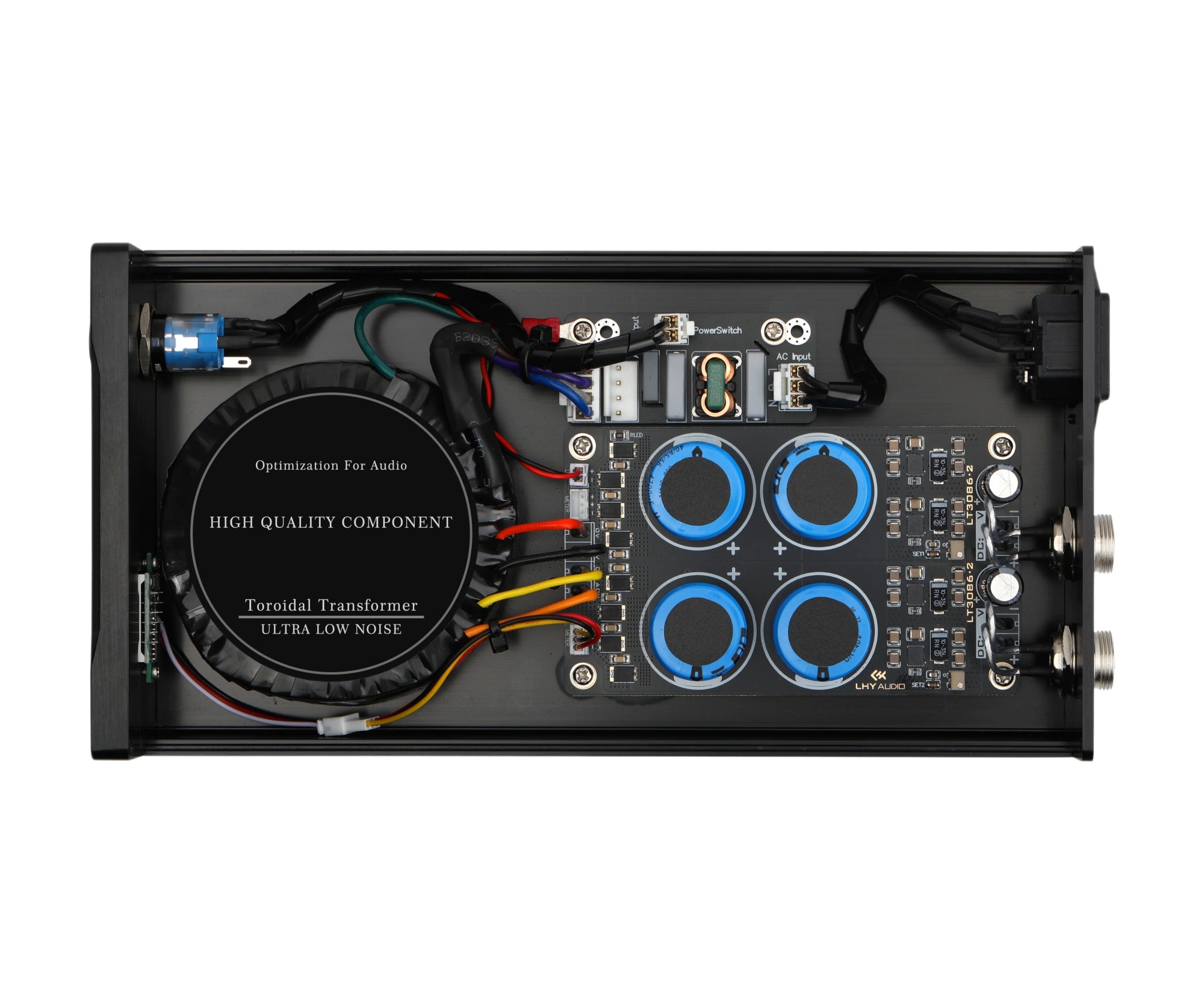

  • Internal Construction: Features key components such as a Noratel toroidal transformer, EMI AC filtering, and a copper-nickel plated heatsink at the bottom for enhanced heat dissipation.
