LPS-A8 | Linear Power Supply for Eversolo DMP-A8

• Linear Power Supply for eversolo DMP-A8
• Designed and hand-built by highly skilled electronics crews by LHY Audio
• Purpose built for eversolo DMP-A8 with selected premium components
• Low Noise, High Speed, High Current, Low Ripple, Low Dropout DC
• Silver Plated internal wiring

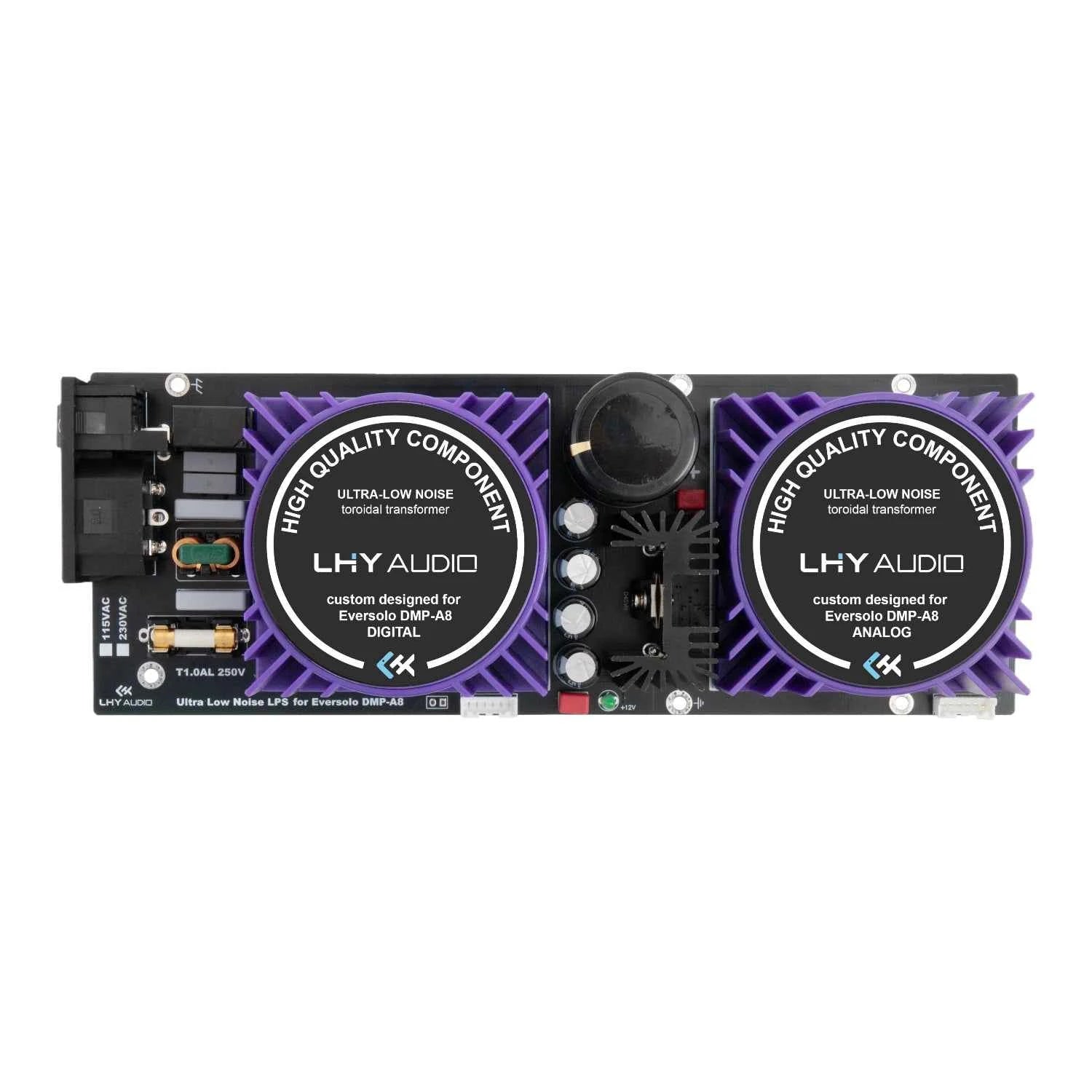

LPS-A8 for Eversolo DMP-A8:

Transformer​: UMI Custom Triple-Shielded& Sealed Toroidal Core

​Input Voltage​: 110V~120V / 220V-240V

​Key Components​

• Voltage Regulator Architecture: LT3042+PNP (Dual independent circuits)
• Main Filter Capacitor: Mundorf
• Secondary Filter Capacitors: Rubycon/ELNA

Disclaimer:

• Modifications void the product [eversolo DMP-A8] warranty.
• If you are not at comfortable with electronic modifications, please refrain from attempting them.

Application Notes:

• If you plan to use more than one external hard disk or SSD via USB ports, please ensure that one of the the SSD/HDD is equipped with its own external power supply.
• The above precaution is essential to avoid overloading the LPS-A8 and ensuring stable and safe operation.

Themal Characteristic of LPS:

• It's important to note that Linear Power Supplies (LPS) generally produce more heat compared to Switching Power Supplies (SMPS)
• Linear Power Supply generates heat as a natural byproduct. This is because LPS regulates the output voltage by dissipating excess voltage as heat. The amount of heat generated depends on the input voltage, output voltage, load current, and the efficiency of the linear regulator.

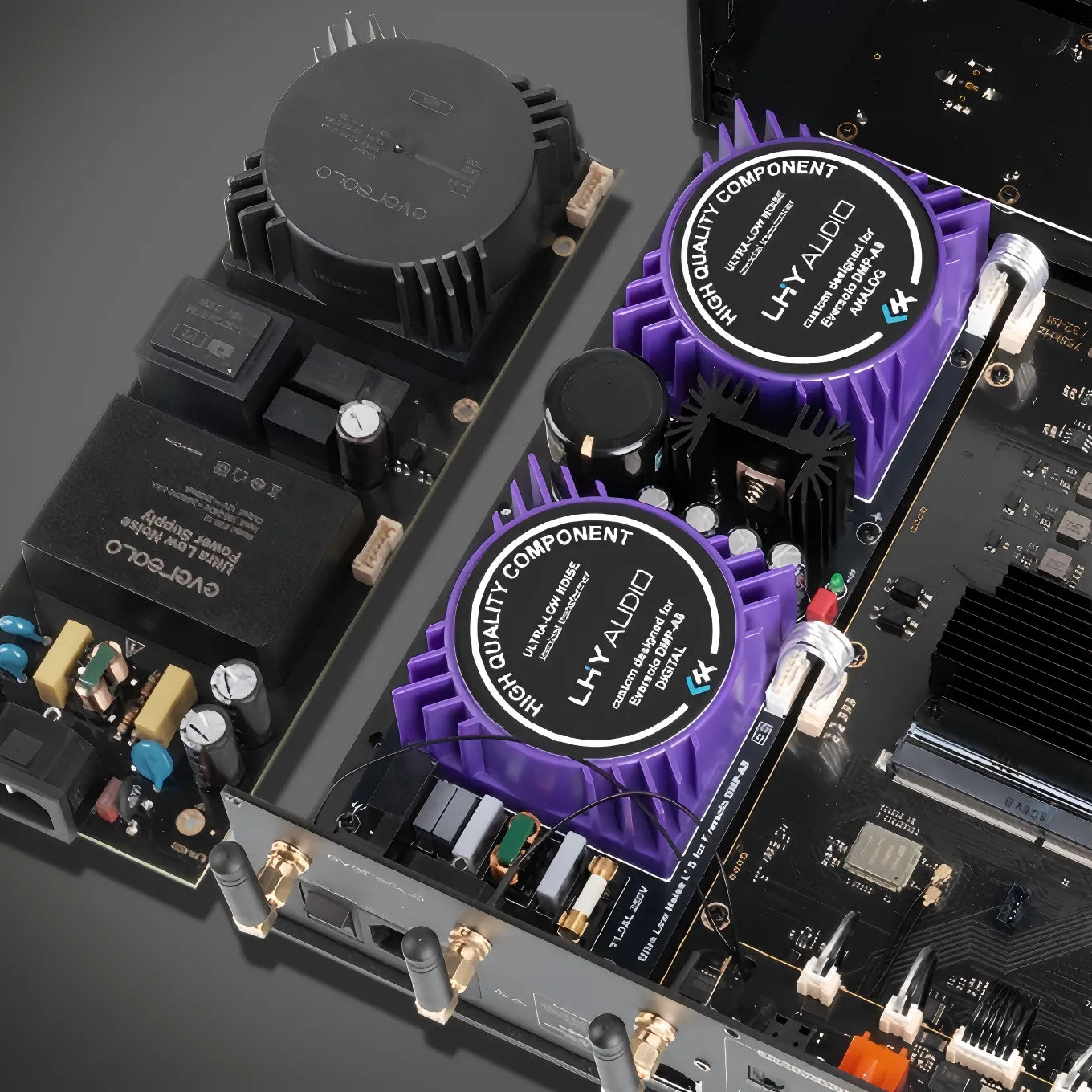

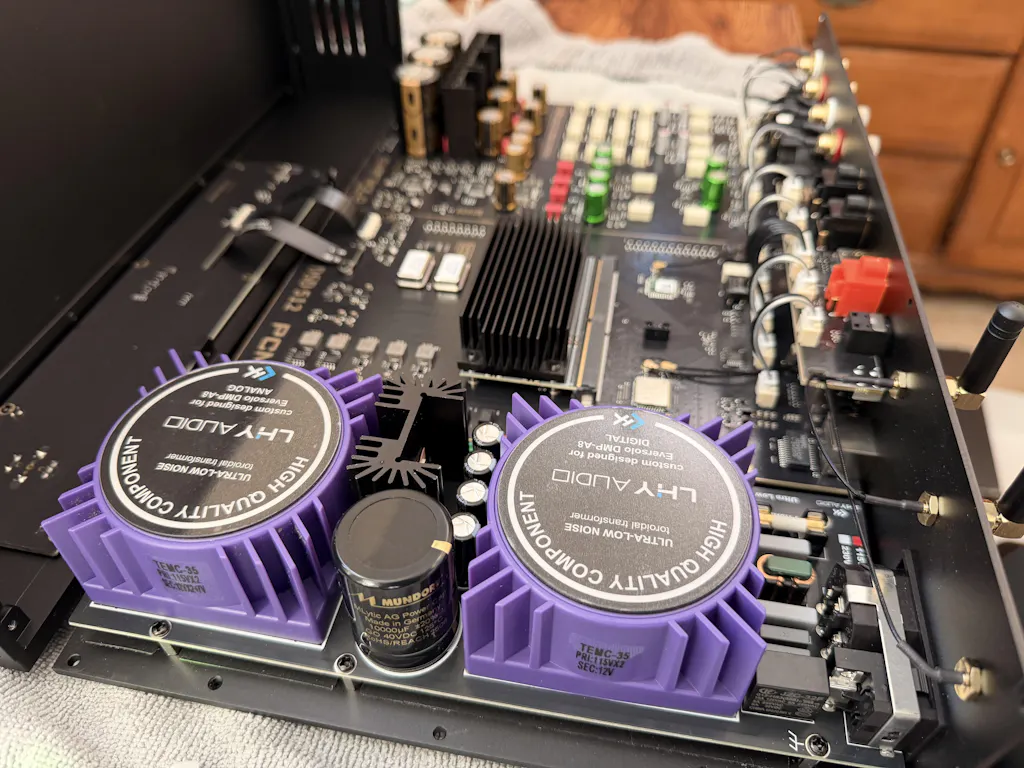

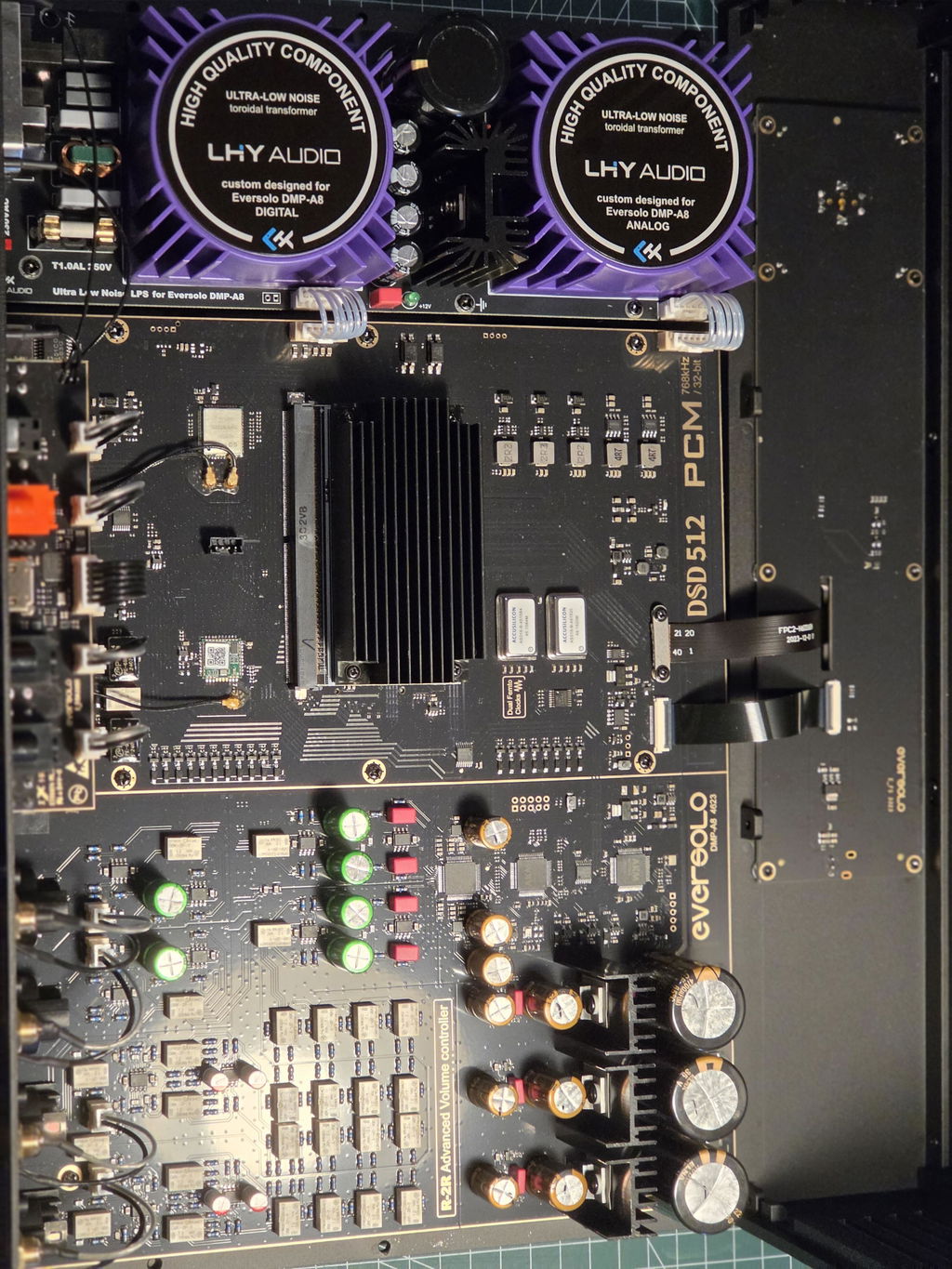

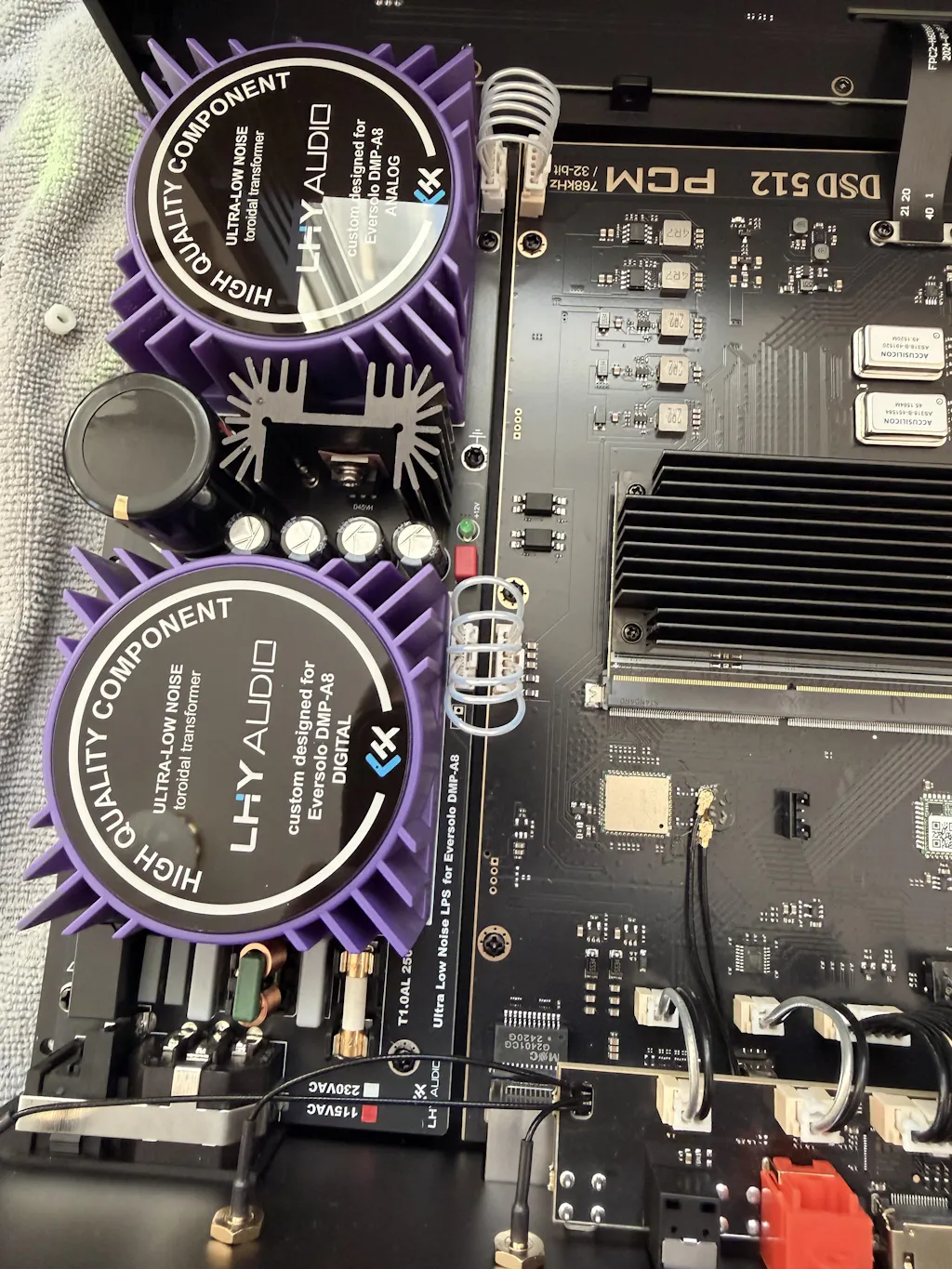

eversolo DMP-A8 with LPS-A8:

• Chassis temperature range of 38-42 °C (tested under ambient temperature approx. 28 °C) for the DMP-A8 with the LPS-A8 installed is within a typical and expected range.
• The presence of louvers in the DMP-A8 chassis for ventilation is a positive design feature. Proper ventilation is essential to maintain the optimal operating temperature of electronic devices.

Additional Recommendation:

• Clear Airflow: Ensure that the louvers are not obstructed by any objects or placed in a way that hinders airflow. Allow sufficient space around the device for air to circulate freely.
• Ambient Temperature: Be mindful of the ambient temperature in the environment where the DMP-A8 is located. High ambient temperatures can make it more challenging for the device to dissipate heat effectively. Consider placing the device in a temperature-controlled environment if necessary.
• External Ventilation: If the device is located in an enclosed space, consider using external ventilation solutions such as additional fans or ducting to improve airflow.
• Power Consumption: Dimming the display and knob brightness and disconnecting unused USB storage devices are effective ways to reduce power consumption.
• Power Off: Turn off the DMP-A8 when it's not in use and avoid leaving it on 24/7 unattended.

Installation Guide (Similar to DMP-A6): LPS-A6 for eversolo DMP-A6
