RPI Pro | Pro Series Raspberry Pi Streamer & Bridge

$920.00

Shipping calculated at checkout.

Description

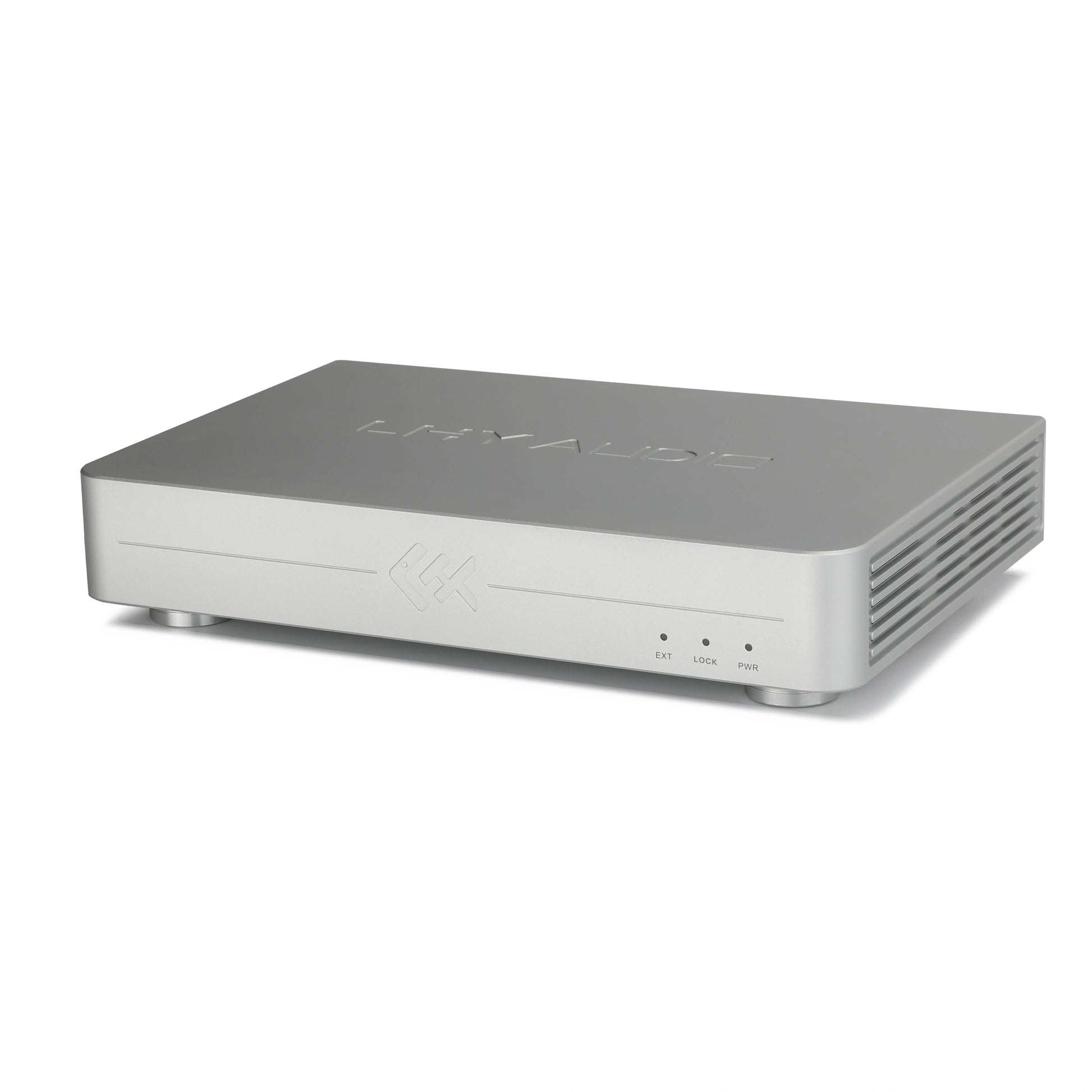

The RPI Pro is a professional-grade audio streamer/bridge meticulously engineered for high-end audio systems and digital sources. At its heart lies the Raspberry Pi Compute Module 4 (CM4), integrated with audiophile-grade hardware design and a deeply optimized system architecture. While offering comprehensive support for popular streaming protocols including Roon Bridge, HQPlayer NAA, UPnP, AirPlay, and Squeezelite, it achieves complete purification of data, clock, power, and signal transmission, establishing a truly pure, stable, and high-quality core for your digital music playback.

In stock!
Free shipping!
Spend to Free shipping
People are currently viewing this
颜色: Silver
RAM: 4GB
AC Voltage: 110V~120V
Free Shipping Wordwide
Manufacturer’s Warranty
Official Technical Support
Select The Options Above
Add to Cart Select The Options Above

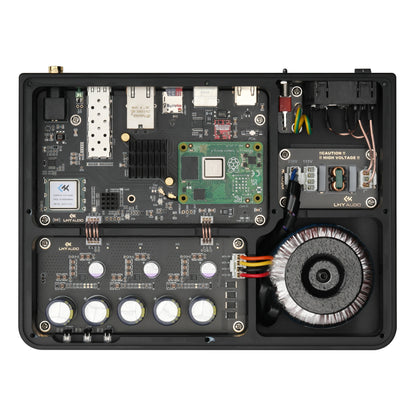

​Compute Module 4 (CM4)​​ – Raspberry Pi computing module: powerful processing, low interference.

​​-100dBc SC-cut OCXO​ – High-precision, low-phase-noise oven-controlled crystal oscillator (-100dBc/1Hz typical).

​PLL with Skyworks Si5381​ – High-performance phase-locked loop chip.

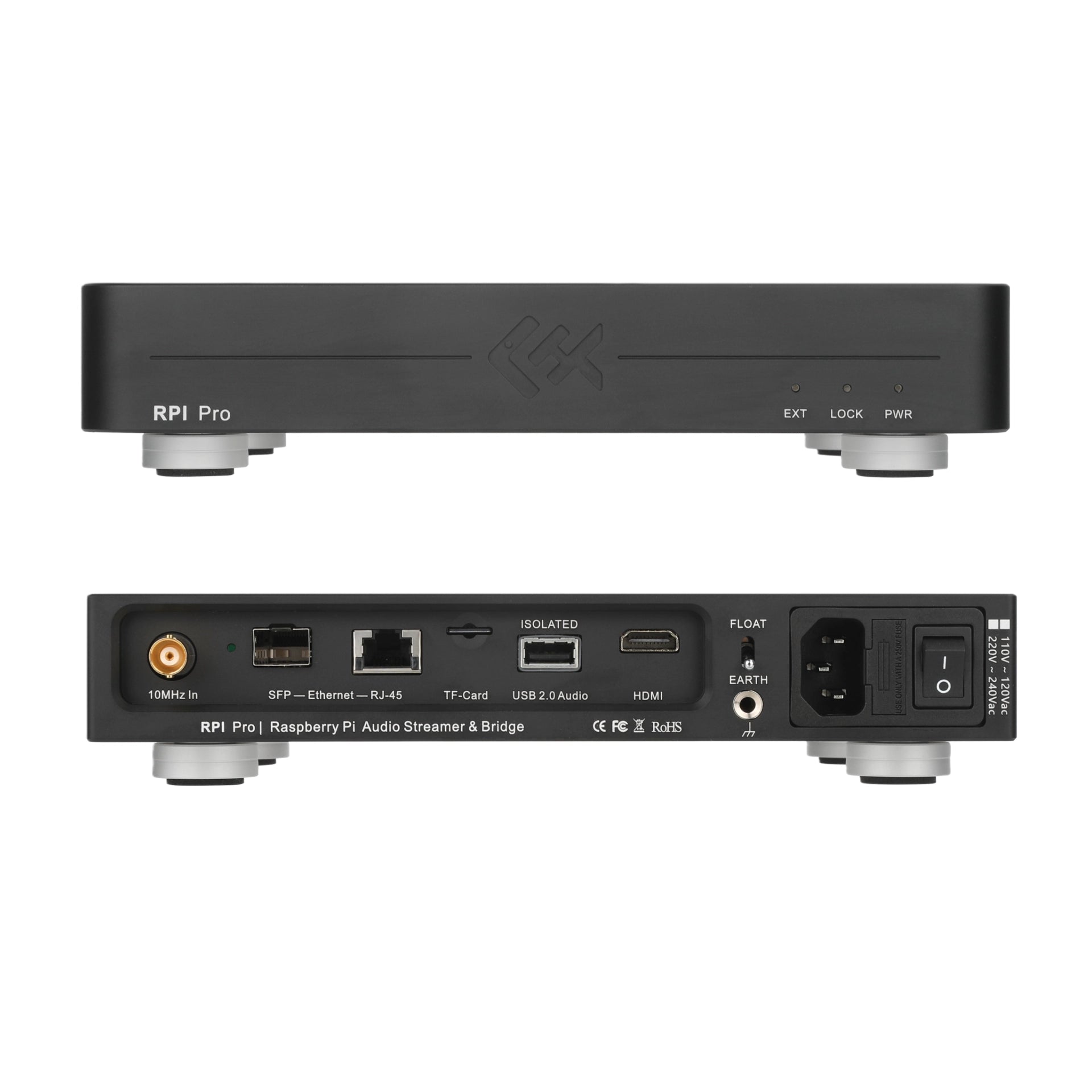

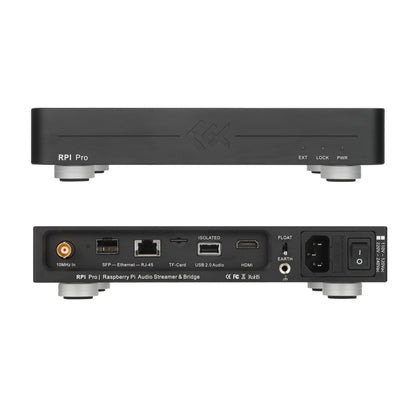

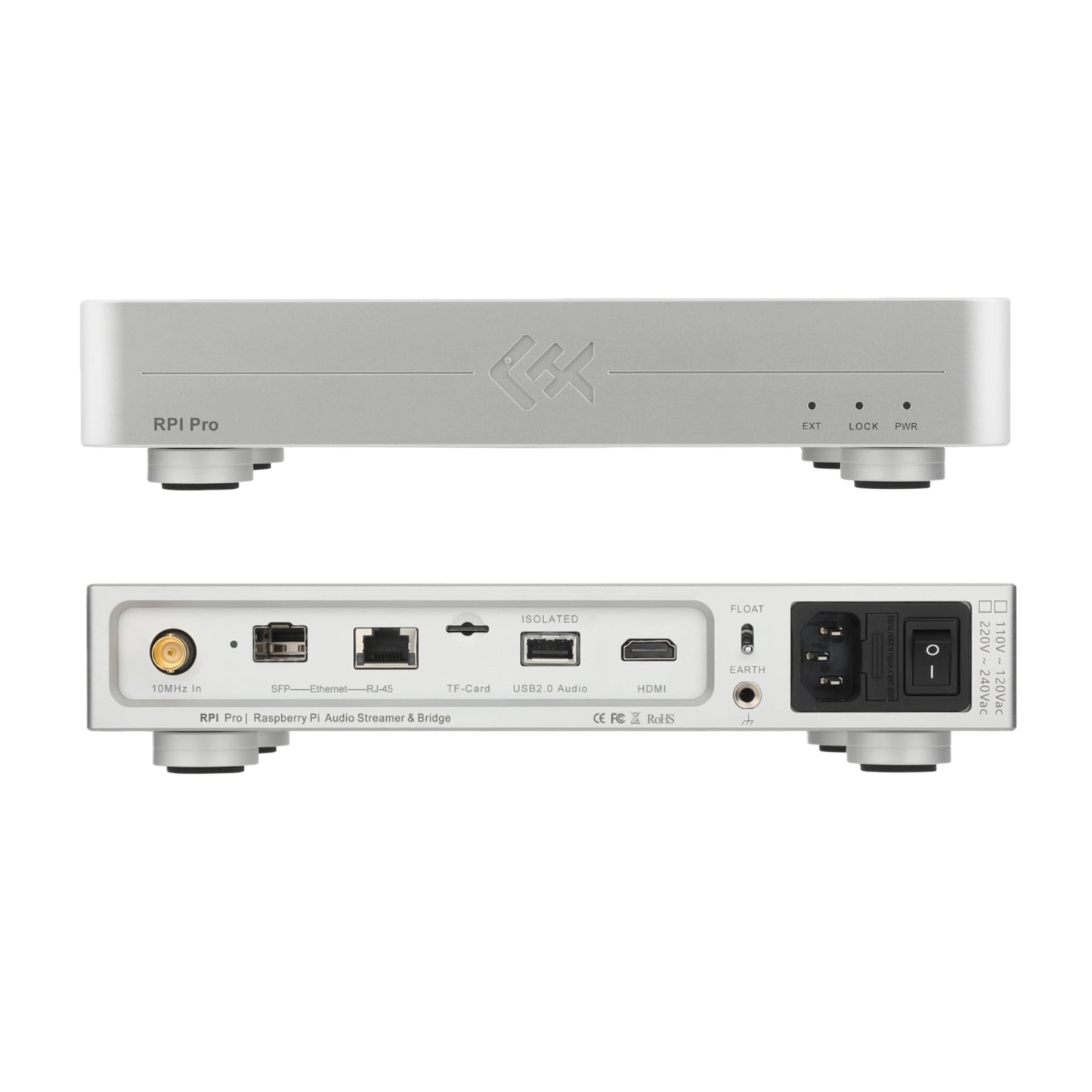

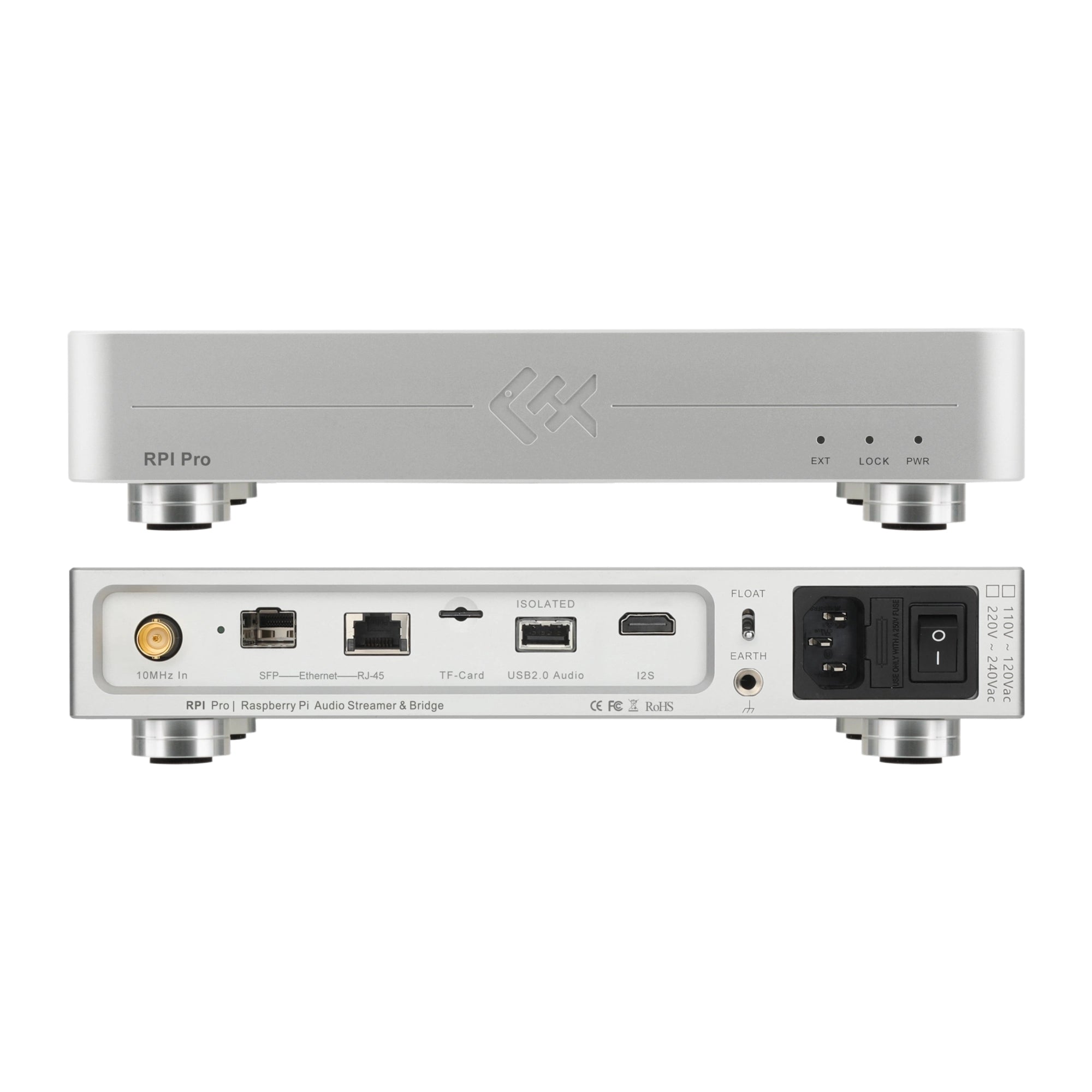

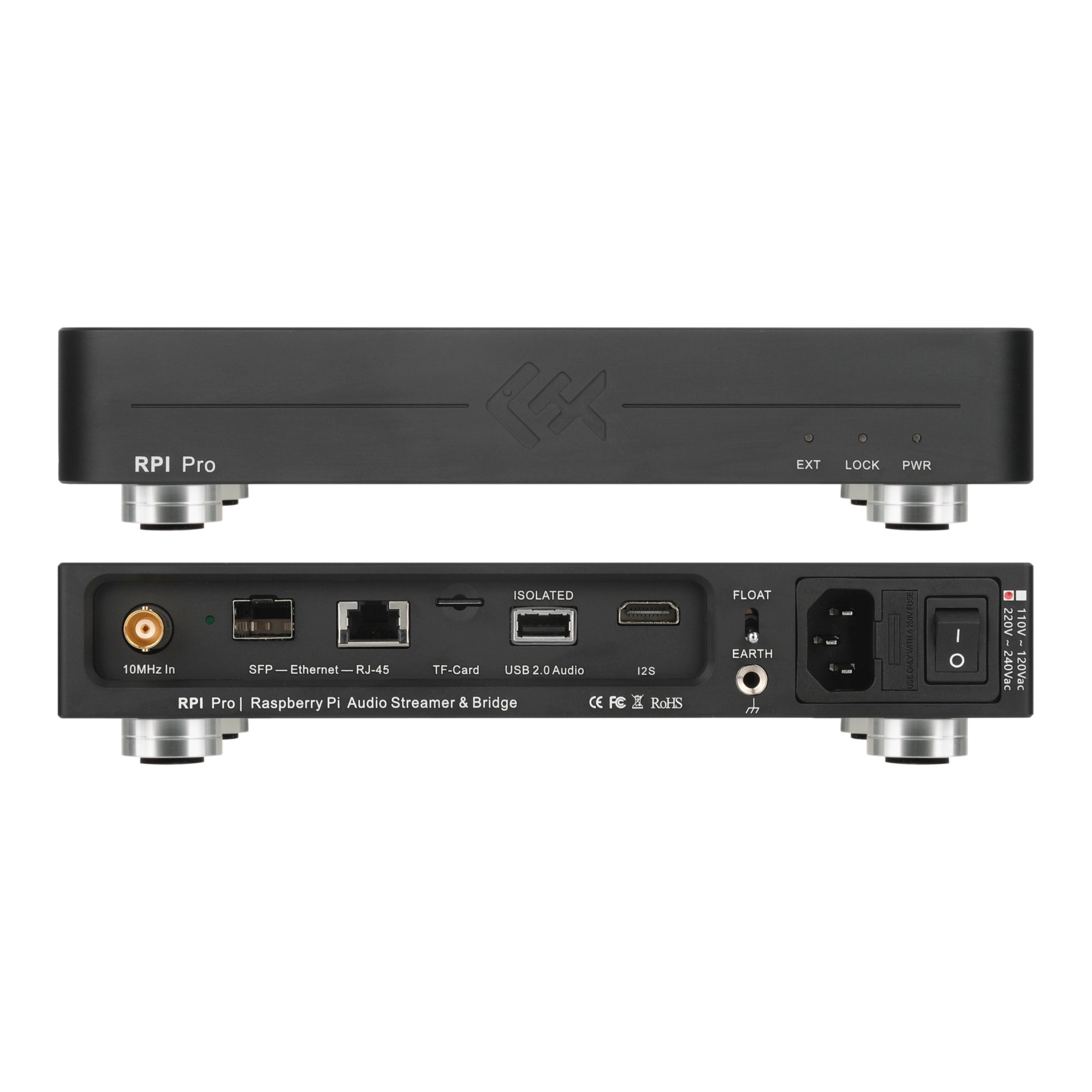

​External 10MHz Master Clock Input​ – BNC connector with auto-switching capability.

​SFP Optical Isolation​ – Built-in fiber optic isolation switch system for network signal purification and noise reduction.

​Native USB 2.0 Output​ – Direct output from CPU without signal conversion, minimizing loss and interference.

​Multi-Channel Independent Power Supply​ – EMI filtering + high-speed rectification and filtering for clean power delivery.

High-Resolution Audio Support​ – DSD 512 (Native DSD) and PCM.

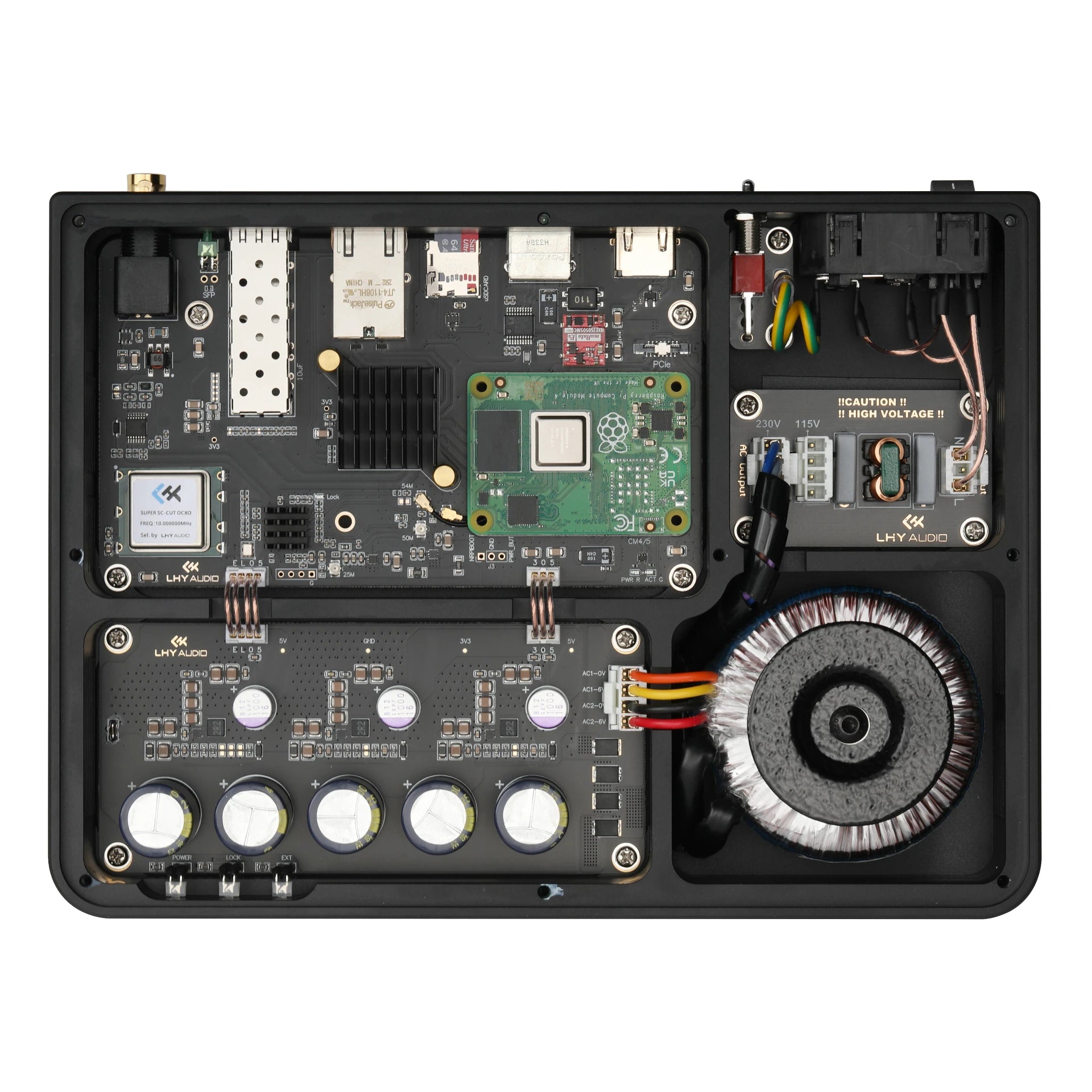

1. Raspberry Pi CM4-Based Architecture​

RPI Pro utilizes the Raspberry Pi Compute Module 4 (CM4), delivering native USB output without PCIe conversion, reducing signal loss and interference. Compatible with popular systems like Volumio, Ropieee, Moode, and PiCorePlayer. Pre-installed with Ropieee for easy setup—stream directly from your phone to your DAC with superior quality compared to Bluetooth.

​2. High-Precision Clock System​

  • Equipped with an ultra-low phase-noise SC-cut OCXO (-100dBc/1Hz typ.) as the master clock reference.
  • Skyworks Si5381 PLL generates synchronized clock signals for the CM4, network controller, and USB interface.
  • Features a 10MHz external clock input (BNC) for advanced reference clock integration, with automatic switching.

​3. Native USB Output with Isolation​

USB 2.0 port is directly driven by the CM4 CPU, bypassing conversion chips. Enhanced with a high-speed isolation IC (3165) and dedicated power supply for studio-grade audio transmission. Ensures stable playback of high-resolution PCM and DSD files, delivering uncompromising fidelity.

​4. High-Performance Network Control​

Dual RJ45 and SFP ports enable fiber-optic network isolation, significantly reducing electrical noise and improving signal integrity.

​5. Precision DC Power Supply​

  • 30VA toroidal transformer with EMI filtering.
  • High-speed rectification and multi-stage filtering with premium electrolytic capacitors.
  • Three independent DC-DC power circuits optimized for high-speed digital performance and microvolt-level low noise.

Built-in Ropieee Software Support:​​

  • HQPlayer NAA
  • Roon Bridge
  • UPNP
  • Spotify Connect
  • Tidal Connect
  • Airplay (for Apple device streaming)
  • Squeezelite (for Daphile/Daphile systems)

Product Link: https://www.lhy-audio.com/products/rpi-pro/

User Manual: Download

Certificate: CE-EMC | LVD | ROHS | FCC
