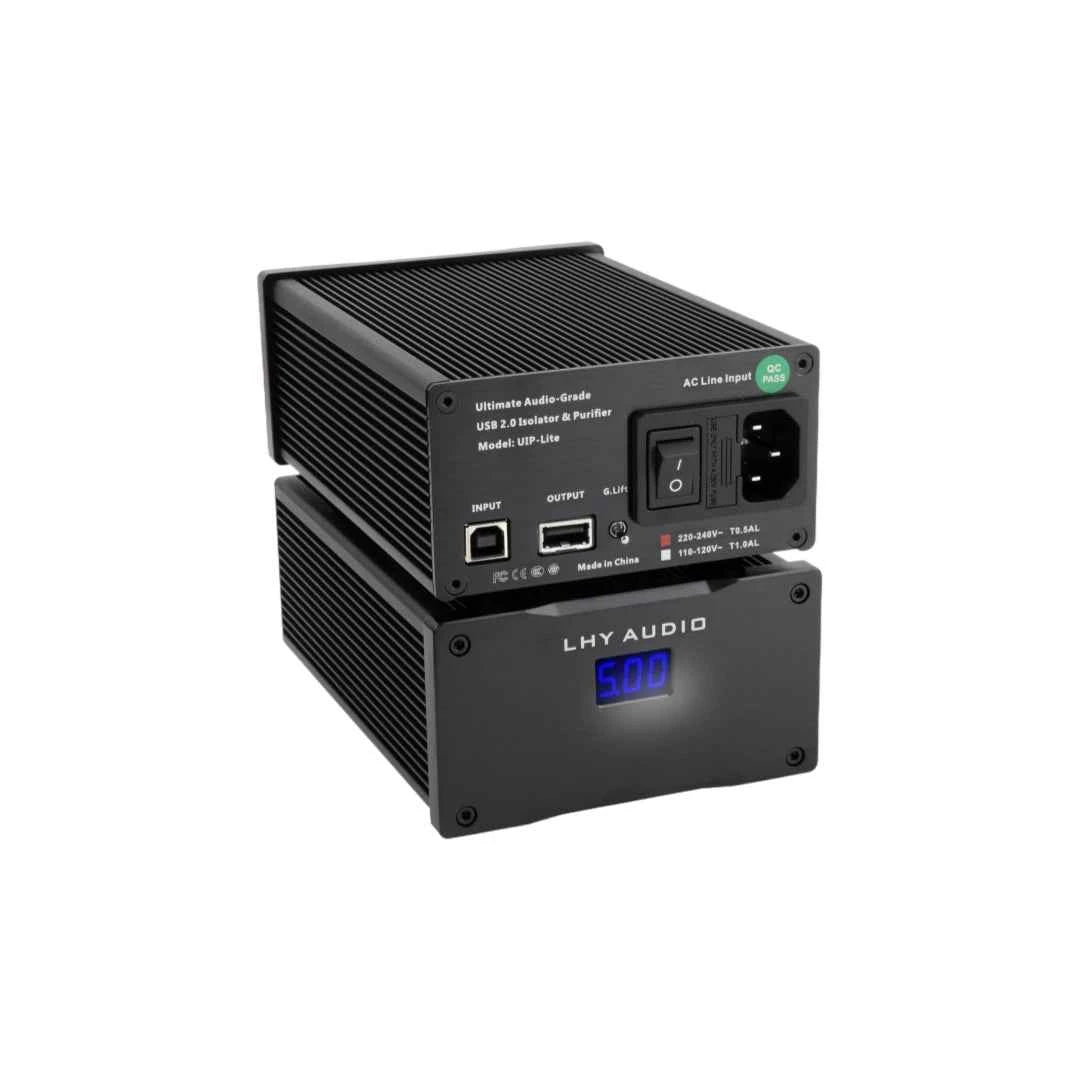

UIP-Lite | USB 2.0 Isolator & Purifier

✔ 480Mbps High-Speed Isolation – Utilizes theADuM3165 isolation chip (3.75kV RMS) for uninterrupted audio data transmission, supporting DSD512/PCM768.

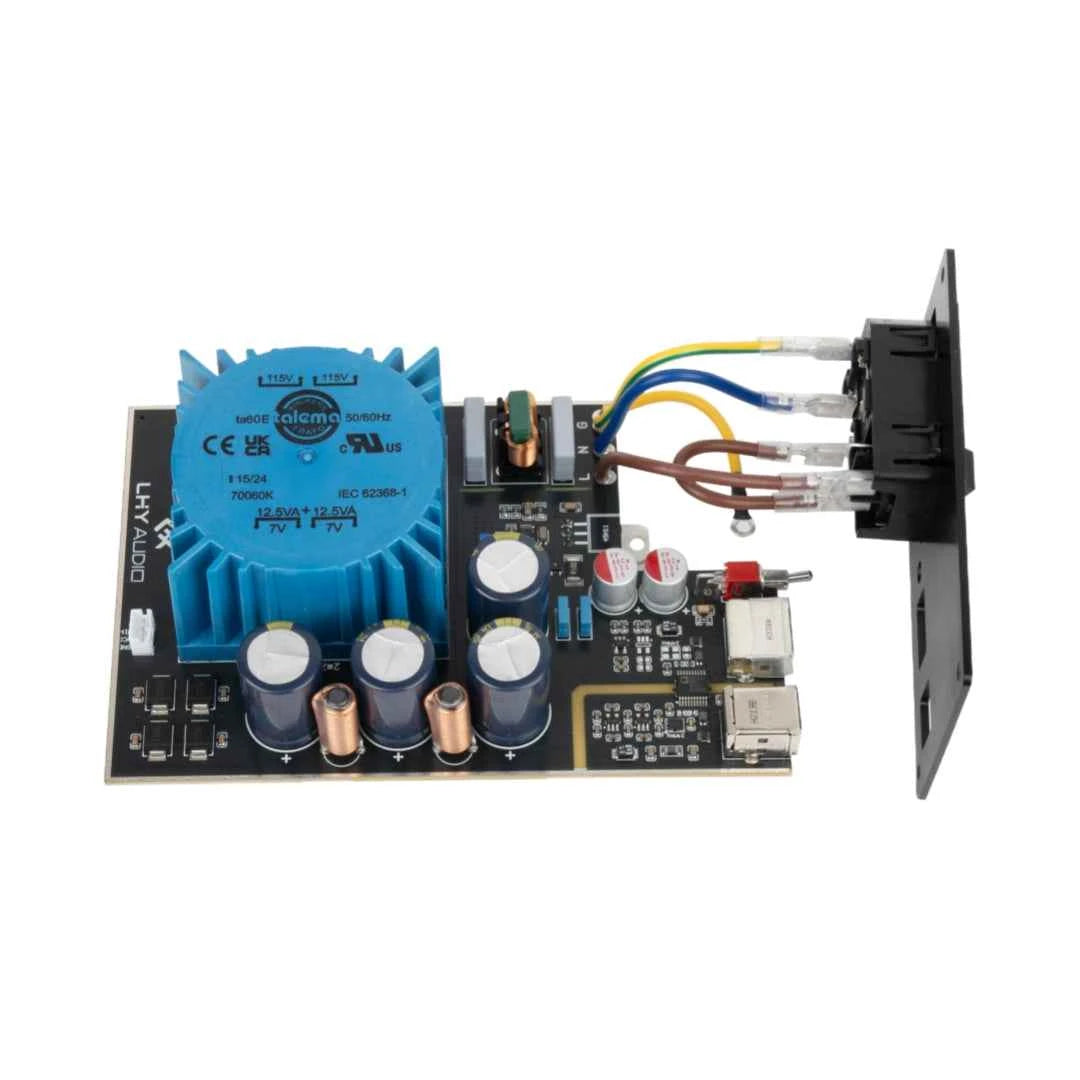

✔ Ultra-Low Noise Power Supply–LT3042+PNP regulation delivers <1μV noise (idle) / <20μV (2A load) for ultra-clean power.

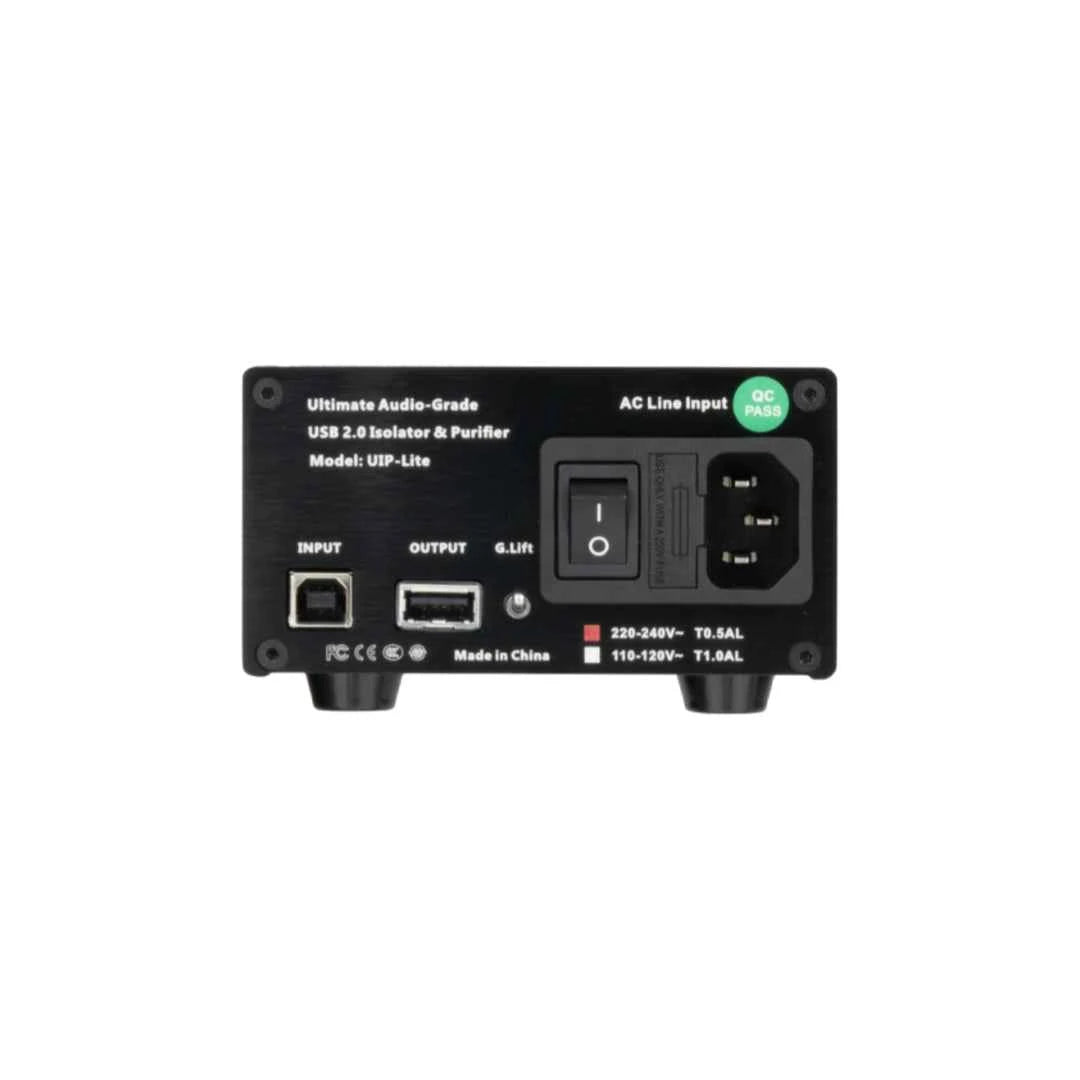

✔ Ground Loop Elimination – Switchable ground lift (isolated/GND-connected) to remove hum and buzz caused by ground loops.
✔ Precision Clocking– Low-jitter silicon oscillator ensures accurate signal timing.
✔ Robust Power Delivery – 5V/3Aoutput with secondary voltage stabilization for stable performance.
✔ Universal Compatibility – Works with PCs, streamers, USB DACs, USB drives, and more.

Technical Specifications

• Input: USB 2.0 Type-B
• Output: USB 2.0 Type-A (signal + power)
• Isolation Chip: ADuM3165 (480Mbps)
• Voltage Display: 3-digit LED
• Power Input: AC 110V~120V/ 220V~240V (default 220~240V)

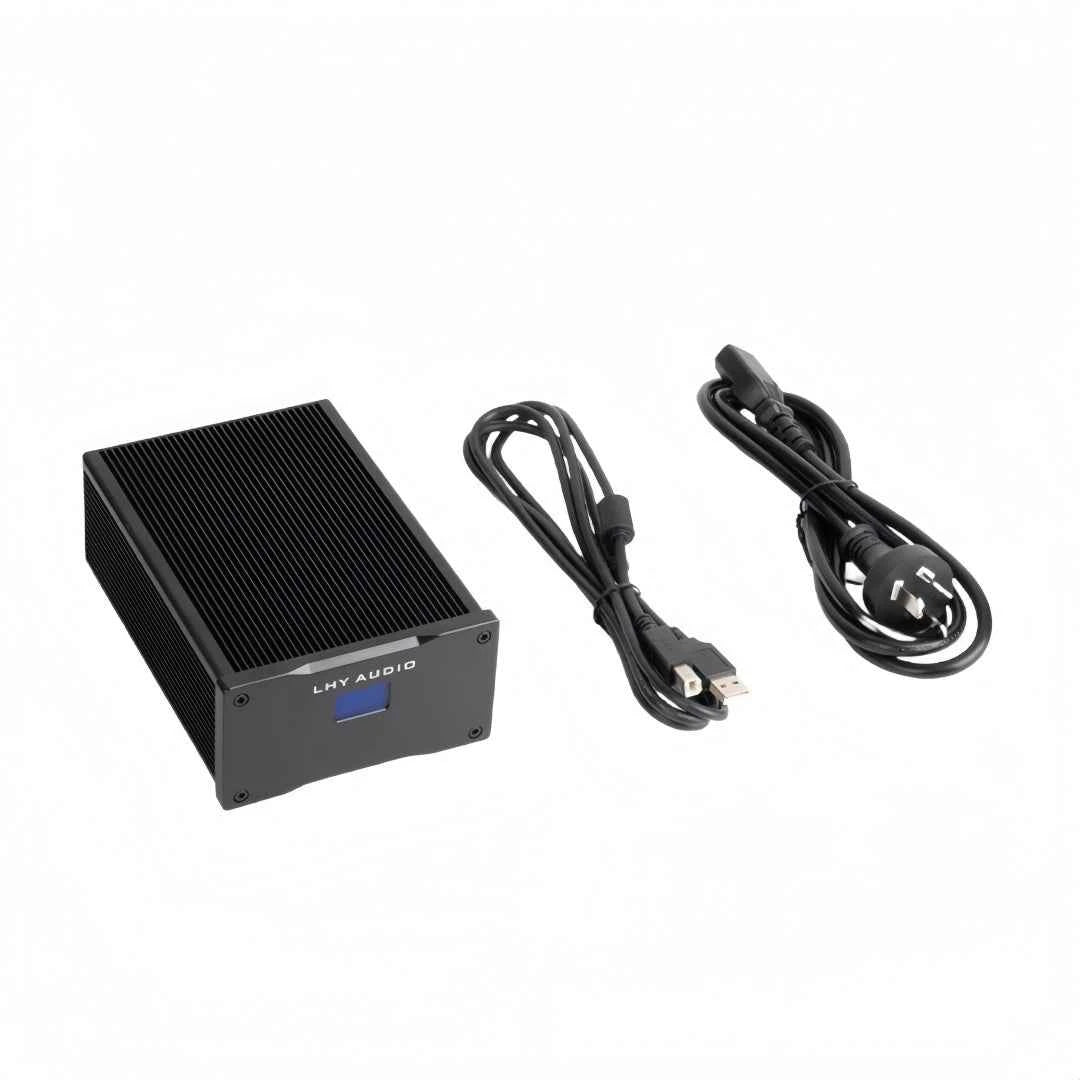

What’s in the package:

• LHY UIP-Lite x1
• Power cord x1
• USB-A to USB-B USB2.0 cable x1

Dimension: 155mm (D) × 110mm (W) × 63mm (H)

Weight: 1.1kg
